LTE CAT-4 WiFi Router with GPS (CM685V-4-G)

  • 3G + 4G + 4GX Modem Router (LTE CAT-4)
  • OpenWrt Fully Featured Linux OS
  • OpenVPN Server and Client
  • Band B28 700 MHz (Telstra 4GX and Optus 4G Plus)
  • LTE Advanced CAT4 with 150Mbps Download Speeds
  • Built-in GPS
  • Automatic failover between ADSL/NBN and 4G LTE
  • Supports Modbus TCP and Modbus RTU/ASCII networks
  • Fully operational on telstra.corp APN

Description

An Innovative GPS Router by Comset Australia

At Comset, we offer a wide range of innovative and fully featured 4G routers designed for even the most remote and harsh Australian environments, such as the 4G LTE WiFi Router with GPS (CM685V-4-G).

The Comset CM685V-4-G is a CAT-4 industrial grade 3G/4G/4GX LTE WiFi Modem Router built on the OpenWrt Linux operating system. With download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps, it is one of the few routers on the Australian market that support band B28 (700MHz).

The Comset CM685V-4-G is designed to suit Australian conditions.  It supports the latest LTE technology that performs fast and reliable data communication.  It enables users to quickly create a secure and fast wireless network.  It features a built-in WiFi N300 with speeds of up to 300 Mbps, one Ethernet WAN port for fixed internet connection and one Ethernet LAN port, as well as a GPIO with four digital output ports to control electrical devices via SMS such as turning on a pump or opening a gate. The four DIO ports can also be used as digital input ports that can send an email or an SMS when triggered for alarm notification.  Other features include VPN IPSEC, PPTP, L2TP and Open VPN to establish a secure connection over the 3G/4G network.



Click here to find your nearest 3G/4G Cellular Tower.

Enquiring About the Comset WiFi Router with GPS

If you have any questions about our CM685V-4-G WiFi router with GPS, or about any other 3G, 4G and 4GX modem router, then contact our team today! You can contact us by calling (03) 9001 9720 or by simply filling in our online contact form.

Out of stock

>>| Basic Features

  • Supports multi-band 4G, 4GX, DC-HSPA+, HSPA+, HSPA, UMTS, GSM, GPRS, EDGE
  • SMA Standard antennas (5 magnetic base antennas included)
  • Optimized EMC design
  • Always on-line: On-line detection and automatic redial
  • Wide range power input (5-40VDC)
  • Smart power management
  • Reliable, flexible, easy to use
  • User friendly set-up wizard for easy configuration and setup
  • Network traffic real-time graphs
  • Network Diagnostic Tools (Ping, Traceroute and NSLookup)
  • RS-232 interface transparent communication (DTU modem function)
  • 1 Ethernet LAN RJ45 port & 1 Ethernet WAN RJ45 port
  • WiFi 802.11b/g/n N300

>>| Enhanced Features

  • Real-time clock
  • VPN Server/Client (Open VPN, PPTP, L2TP, IPSec), and VPN pass-through
  • Built-in DHCP server
  • Supports DHCP Relay
  • Supports NAT and DMZ host
  • Supports DNS proxy and Dynamic DNS (DDNS)
  • Supports Static routing table
  • Supports packet filtering
  • Built-in multi-routing backup (Ethernet and dialup network)
  • System and network monitoring
  • WAN interface traffic statistics
  • Supports multiple protocol conversion
  • Transparent data transmission (DTU feature)
  • WEB/Telnet/console management interface
  • Supports radio network data envelope counting
  • Self-diagnostic and alarm output
  • Local/remote profiles backup and retrieve
  • Local/remote firmware upgrade via the web
  • Remote web management
  • Urgent event alarm via SMS
  • Firewall, packet filtering
  • Supports data centre communication
  • Supports NTP
  • Supports LED status indication
  • Supports VLAN ID tagging
  • Supports LCP, ICMP check
>>| Specifications
Wireless
• Compatible Mobile Networks
o 4G/ 4GX
o UMTS WCDMA (HSUPA/ HSDPA/ HSPA/ HSPA+/ DC-HSPA+)
o GSM EDGE
o GSM GPRS
• Cellular Frequency
o 4G LTE FDD Octo-band
B1 (2100)
B2 (1900)
B3 (1800)
B4 (1700)
B5 (850)
B7 (2600)
B8 (900)
B28 (700)
o 4G LTE TDD band B40 2300Mhz
o UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
o Quad-band EGSM 850/ 900/ 1800/ 1900MHz
• Bandwidth
o 4G LTE FDD/ 4GX LTE-A
 Downlink 150Mbps
 Uplink 50Mbps
o 4G LTE TDD
 Downlink 130Mbps
 Uplink 35Mbps
o DC HSPA+
 Downlink 21/42Mbps
 Uplink 5.76Mbps
o HSPA
 Downlink 14.4Mbps
 Uplink 5.76Mbps
o HSUPA
 Downlink 7.2Mbps
 Uplink 5.76Mbps
o HSDPA
 Downlink 7.2Mbps
 Uplink 384 Kbps
o WCDMA/UMTS
 Downlink 384 Kbps
 Uplink 384 Kbps
o EDGE
 Downlink 236 Kbps
 Uplink 118 Kbps
o GPRS
 Downlink 85.6 Kbps
 Uplink 42.8 Kbps
WiFi
• 802.11b/g/n; 300Mbps
GPS
supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS)
SMS
• SMS call to control router to be online, offline, reboot, status info, alarm, WiFi on, WiFi off
VLAN
• ID tagging Supported
Fail Over Redundancy (network backup feature)
• Auto-dial feature, keep alive link
Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client
DTU
• DTU feature, serial RS232 to Cellular Gateway
VPN
• OpenVPN, IPSec, L2TP, PPTP
• Server and Client supported
Firmware upgrade
• Supported locally and remotely
Protocol support
• TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, SNMP, WPS, DMZ, Syslog (local and remote), NAT, xDSL, NTP, QoS, SNMP, Dynamic routing (OSPF, OSPF6, RIP, RIPng, BGP), support firmware update locally and remotely
Security
• Supports 64/128 bits WEP, 802.1x, WPA and WPA2
• Supports WDS
• TKIP, AES encryption
• Supports WPA1/2- 802.1x
• Supports EAP- TLS, TTLS, LEAP, PEAP
• Supports access with username and password
• Supports access control base WAN/LAN interface
• Supports access control base source IP address
• Defence DOS attack, supports SYN flooding, IP surfing, ping of death, fragile, teardrop, land
• Supports PAP and CHAP
• Supports IP filtering
Advanced Firewall Features
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• VPN Pass-through
Media Access Control
• CSMA/CA with ACK
Certifications
• Radius Client
Interfaces
LAN
• 1 x 10/100M LAN port (RJ45 interface)
• 1 x 10/100M LAN/WAN port (RJ45 interface)
Antennas
• 2 x antennas for WiFi (detachable SMA interface x 2)
• 2 x antennas for Cellular (detachable SMA interface x 2, cellular supports diversity receiving MIMO)
LED
• SYS*1
• VPN*1
• SIGNAL*1
• CELL*1
• WAN*1
• LAN*1
• WiFi*1
Serial port

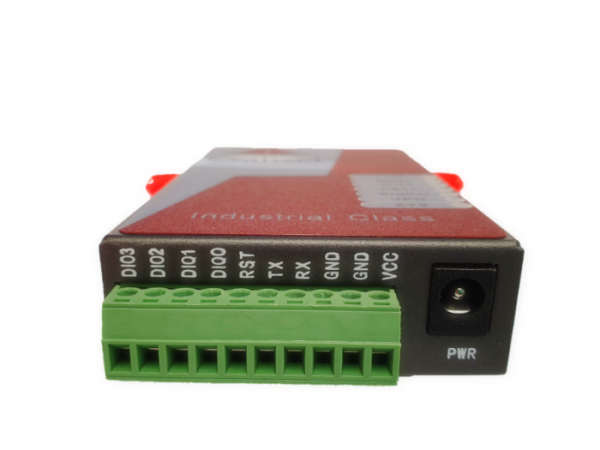

• RS232 built-in terminal block interface
AT command
• Supported
UIM/SIM Card Slot
• Supports 1.8/3V UIM/SIM cards, one sim card slot
DC Jack
• Two types of power input
o 2.5mm DC jack * 1
o Terminal block * 1
Power
Power supply
• DC5V-40V, typical DC9V1A or 12V 1A, 12V car use supported
Power consumption
• Current
o Idle 122mA@12VDC
o Max 208mA@12VDC
o Average 167mA@12VDC
• Power
o Idle 1.2W@12VDC
o Max 2.5W@12VDC
o Average 2W@12VDC
Software
Device Management
• WEB interface (Internet Explorer v6 or later, Mozilla Firefox v1.5 or later, Chrome, Opera, Safari or other Java-enabled browsers)
Minimum System Requirements
• Mobile Internet Access Subscription and Internet PC Adapter
• Computer with:
o Windows 7, 8, 10, Vista, Windows XP SP2, Windows 2000 SP4 or Mac OS X(v10.4/v10.3), Linux
o Internet Explorer 6 or Mozilla Firefox
o CD-ROM Drive
o Network Interface Card
Physical
Operating Temperature
• Working -40°C to 75°C
Humidity
• 95% Maximum (non-condensing)
Dimensions
With case 100mm x 60mm x 21mm
Weight
• 220g (not including antennas)
• 330g (including antennas)
• 650g (including all accessories)
Other
Warranty
• 1 Year
Regulatory Compliance
• RCM, CE, RoHS
Package Contents
• CM685 Router
• CAT5 Ethernet Cable
• Serial Cable
• Power Adapter

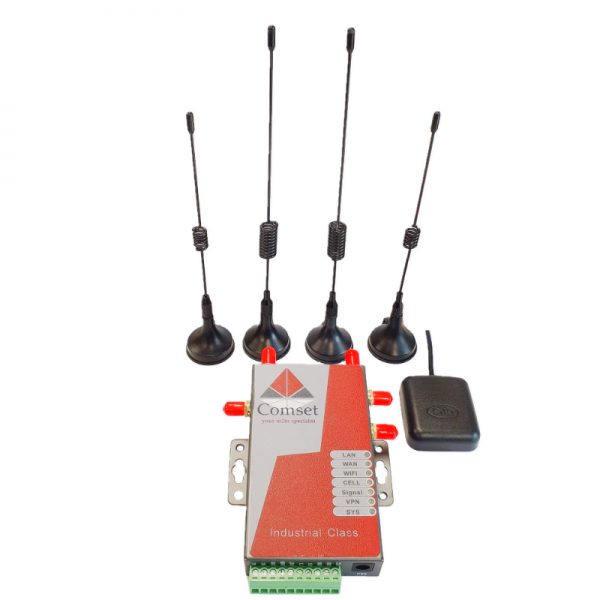

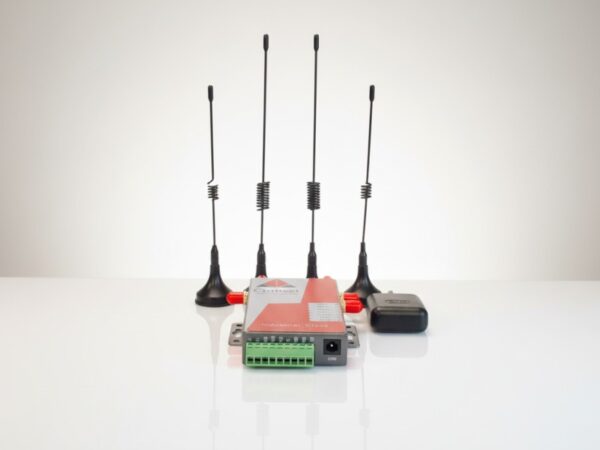

• 5 x Antennas (2xCell, 2xWiFi, 1xGPS)
