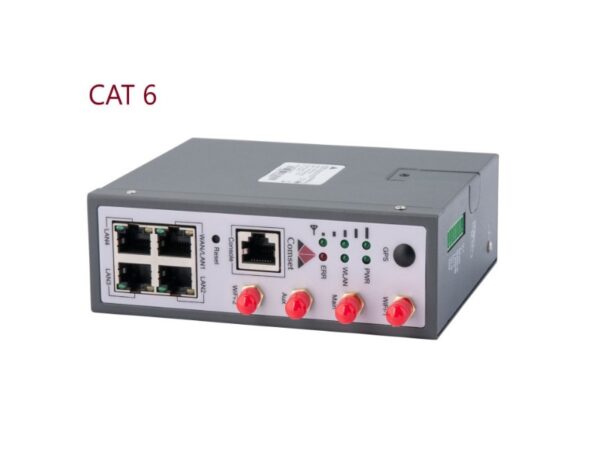

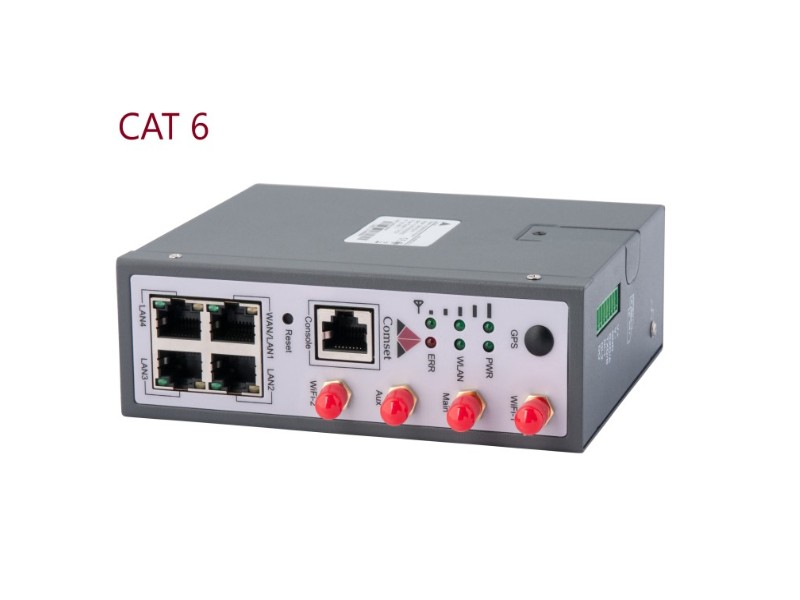

Dual SIM Dual Band 4-Port Gigabit Router (CM510Q-W)

  • LTE CAT6 with Download Speeds of up to 300Mbps
  • Four Gigabit Ethernet Ports
  • Band B28 700 MHz (Telstra 4GX and Optus 4G Plus)
  • Dual SIM card for backup redundancy
  • Automatic failover between ADSL/NBN and 4G LTE
  • Supports 4G Voice VoLTE and E000 Call
  • MIMO LTE Technology
  • Dual Band Concurrent WiFi 2.4GHz and 5GHz
  • Powerful ARM Cortex A7 900MHz CPU
  • USB3.0 cellular interface compatible with modems delivering super fast speeds of up to 5Gbps
  • DIN rail mount
  • Fully operational on telstra.corp APN

Description

The Comset CM510Q-W is an industrial grade LTE CAT 6 Modem Router with download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps.  With four Gigabit Ethernet ports and concurrent 2.4GHz and 5GHz dual band WiFi, it provides a powerful and rapidly deployable internet solution to commercial customers and small to medium businesses. The Comset CM510Q-W is an innovative router powered by the latest ARM Cortex A7 900MHz CPU. It features dual SIM card slots for backup redundancy, dual band WiFi 802.11ac to help reduce WiFi traffic congestion and interference and ensure a fast and reliable service, 3 x Gigabit LAN ports for fast wired connections, 1 Gigabit WAN/LAN port, as well as a GPIO with two digital input ports and one digital output port.  Other features include VPN IPSEC, PPTP (Server and Client), L2TP and OpenVPN to establish a secure connection over the 3G/4G network.

The innovative design, easy integration and rich built-in features make the CM510Q-W the router of choice for a wide range of business and commercial applications, including SOHO, SMB, industrial automation, building automation, security, surveillance, transportation, health, mining and environmental monitoring.

Click here to find your nearest 3G/4G Cellular Tower.

Click here for information about the Remote Management Software.

Reseller Enquiries
  • Built-in 4G LTE-A CAT 6 industrial cellular module, that supports 256QAM and has been certified by Telstra as LTE CAT 13 (DL) and LTE CAT 6 (UL), achieving speeds of up to 390Mbps DL and 50Mbps UL
  • MIMO LTE Technology (2×2, 4×2, DL)
  • Supports Band B28 (700MHz)
  • Cellular Frequency
    • ​4G LTE FDD B1/B3/B5/B7/B8/B20/B28/B32
    • ​4G LTE TDD B38/B40/B41
    • ​2 x CA Carrier Aggregation
    • DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8
  • Powerful Cortex A7 900MHz CPU
  • Concurrent dual band 2.4GHz and 5GHz
  • Built-in 4-Port GBE Switch
  • Dual SIM card slots
  • Automatic failover between ADSL/NBN and 4G LTE
  • Auto-dial feature, keep system stable
  • WDT watchdog, multi-link detection
  • Always online, reboots automatically if disconnected to ensure continuous connection
  • Bandwidth limitation function to limit Download and Upload speeds
  • Supports DNS proxy and Dynamic DNS (DDNS)
  • Rapid service deployment applications
  • VPN (OpenVPN, IPSEC, L2TP, GRE, PPTP Client and Server)
  • TCP/IP protocol stack, Telnet, SSH, HTTP, PPP, PPPoE, network protocol
  • Virtual data and private network (APN/VPDN)
  • On-demand dialling, including time on/off-line
  • Serial RS232 to TCP/IP
  • Two digital Input and one digital Output

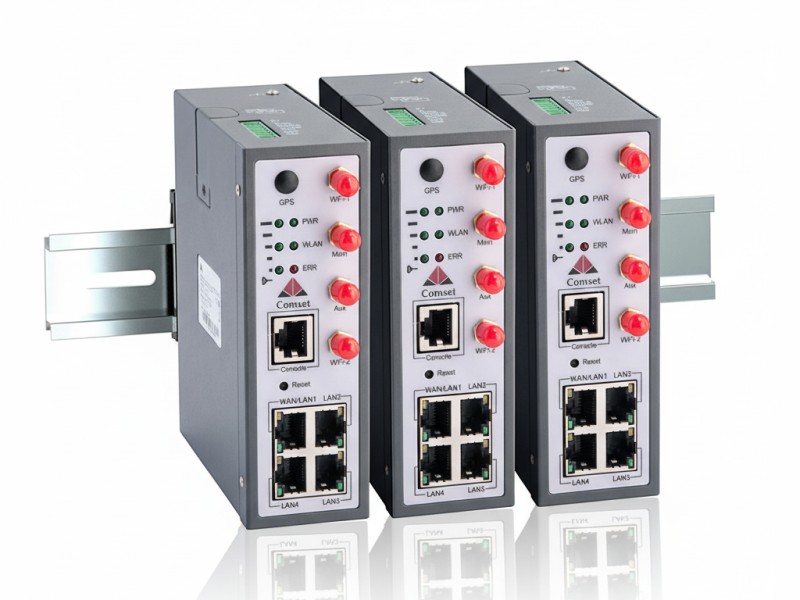

  • DIN-rail mounting for industrial applications (DIN-rail bracket included)
  • MIMO cellular antennas (2) and MIMO WiFi dual band antennas (2) included
  • Shock and vibration resistant
Specification
 Cellular Frequencies Ethernet Standards
    • ​4G LTE FDD
      • ​B1 (2100)
      • B3 (1800)
      • B5 (850)
      • B7 (2600)
      • B8 (900)
      • B20 (800)
      • B28 (700)
      • B32 (1500)
    • ​4G LTE TDD
      • ​B38 (2600)
      • B40 (2300)
      • B41 (2500)
    • ​2 x CA Carrier Aggregation
      • ​B1+B1/B5/B8/B20/B28;
      • B3+B3/B5/B7/B8/B20/B28;
      • B7+B5/B7/B8/B20/B28;
      • B20+B32;
      • B38+B38;
      • B40+B40;
      • B41+B41
    • DC-HSPA+/HSPA+/HSPA/WCDMA
      • B1/B2/B5/B8
  • 10/100/1000 Base-T (IEEE 802.3)

  • Mode: Full or half duplex (self-adaptive)

 WLAN Hardware
  • Standard: IEEE 802.11 b/g/n/ac

  • Security: WEP, WPA and WPA2 encryption

  • Mode: AP, Client, station, bridge mode support


  • CPU: Cortex A7 Core 900MHz/867Mbps

  • Memory: 128Mb Flash, 1Gb DDR3 RAM

 Route Protocol VPN Tunnel
  • Static route
    RIPv2/OSPF dynamic route

  • IPSec
    PPTP client/server

  • L2TP client
    GRE
    OpenVPN

 Firewall & Filtering GPS (Optional)
  • IP packet/Domain/MAC address filtering

  • NAT

  • DMZ

  • GPS sensitivity: -160dBm

  • GPS accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Time to First Fix: Cold Status 27s, Hot status 1s

  • Protocol: NMEA-0183 2.3V


 Device Management LED indicators
  • Local or remote web browser

  • CLI/Telnet command

  • M2M management platform (optional)

  • SSH configuration (optional)

  • PWR

  • WLAN

  • Signal

  • ERR


 Power Consumption Power Supply
  • Power Consumption:

              Operation mode: 460mA@+12VDC

              Idle mode: 400mA@+12VDC

  •     7.5VDC – 32VDC

 Interfaces Other
  • 4× Gigabit Ethernet (3xLAN,1xWAN/LAN)

  • 1× Console Port

  • 8 Pins Terminal Block   contents:
                1×RS232
                  2×Digital Input
                  1×Digital Output
                  1×DC power   interface(Anti-reverse)

  • 4× SMA-K antenna interface

  • 2× Standard SIM/R-UIM Slot

  • 1x expansion USB 3.0

  • Dimension: 132mm x 112mm x 44mm


  • Weight: 400g

  • Operating temperature: -30 ~ +70 degree C
    Storage temperature: -40 ~ +75 degree C
    Relative humidity: <95%   (non-condensing)

  • Warrantee: one year

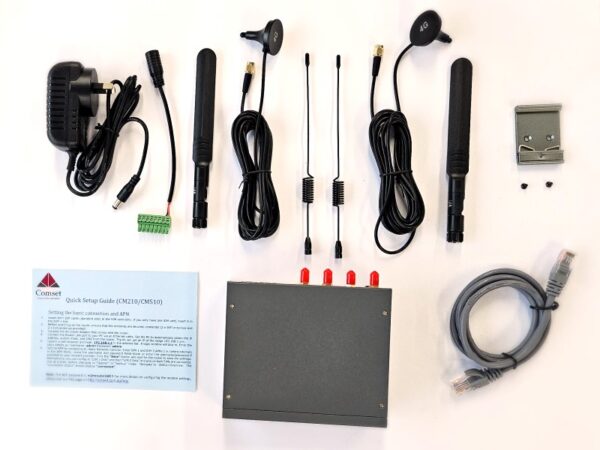

 Certifications Package Content
  • RCM

  • CE

  • RoHS

  • Modem is approved by Telstra

  • 1x CM510Q-W 4G Router

  • 2x Wi-Fi dual band rubber antennas

  • 2x 4G Magnetic base antennas

  • 1x Ethernet Cable

  • 1x Power Supply Adapter

  • 1x DIN Rail bracket
