5G/4G/3G WiFi Router with Dual SIM (CM550W-POE)

  • 5G Modem Router with lightning fast internet speeds
  • Worldwide 5G and 4G LTE-A coverage
  • Dual Band concurrent WiFi 2.4 GHz and 5 GHz
  • Four Gigabit Ethernet Ports (3 x LAN and 1 x LAN/WAN)
  • Supports Power over Ethernet PoE & PoE+ output, up to 30 W per channel
  • Automatic failover between NBN/Starlink and 5G/4G/4GX



Description



The Comset CM550W-POE is an industrial grade 5G WiFi Router delivering lightning fast internet speeds over the 5G network. In addition, it supports automatic failover to 4G LTE-A Cat-19. With four Gigabit Ethernet ports and built-in 802.11 AC dual band WiFi, the CM550W-POE 5G Industrial Router provides a powerful and rapidly deployable internet solution to commercial customers, and small, medium and enterprise businesses. The built-in Power over Ethernet, PoE and PoE+, supports up to 30 W per channel across two Ethernet ports. It is ideal to power IP cameras, Access Points, IP Phones or other PoE devices.

The Comset CM550W-POE is an innovative router powered by a powerful dual-core 880 MHz CPU. It features dual SIM card slots for backup redundancy. The concurrent dual band WiFi 2.4 GHz and 5 GHz helps reduce WiFi traffic congestion and interference, and ensures a fast and reliable service. The CM550W-POE comes with 3 x Gigabit LAN ports for fast wired connections and 1 x Gigabit LAN/WAN port for fixed internet allowing failover between 4G/4GX/5G and NBN/Starlink. It also features a GPIO with two digital input ports and two digital output ports as well as RS232 and RS485 serial ports. Other features include VPN IPSEC, PPTP, L2TP and Open VPN to establish a secure connection over the 4G/4GX/5G network.

The innovative design, easy integration and rich built-in features make the CM550W-POE WiFi router one of the best 5G Routers in Australia. It is the router of choice for a wide range of business and commercial applications, including SOHO, SMB, SME, industrial automation, building automation, security, surveillance, transportation, health, mining, and environmental monitoring.

Click here to find your nearest 3G/4G/5G Cell Tower.

Click here to find Telstra’s 4G and 5G coverage in your area.

Click here to find Optus’ 4G and 5G coverage in your area.

Reseller Enquiries
  • 5G Modem Router with lightning fast internet speeds
  • Worldwide 5G and 4G LTE-A coverage
  • Dual Band concurrent WiFi 2.4 GHz and 5 GHz
  • Four Gigabit Ethernet Ports (3 x LAN and 1 x LAN/WAN)
  • Supports PoE & PoE+ output up to 30 W per channel
  • Automatic failover between NBN/Starlink and 5G/4G/4GX
Specifications
 Cellular Frequencies  Bandwidth
5G

  • – 5G NR Sub-6 GHz
  • – 5G NR NSA
    • • n1/n2/n3/n5/n7/n8/n12/n20/n25/n28
    • • n38/n40/n41/n66/n71/n77/n78/n79
  • – 5G NR SA
    • • n1/n2/n3/n5/n7/n8/n12/n20/n25/n28
    • • n38/n40/n41/n66/n71/n77/n78/n79
  • – MIMO
    • • DL 4 X 4 MIMO
    • • n1/n2/n3/n7/n25/n38/
    • • n40/n41/n66/n77/n78/n79
    • • UL 2 x 2 MIMO
    • • n41

4G LTE

    • – LTE CAT19 DL/ CAT18 UL
    • – 4G LTE FDD
      • • B1/B2/B3/B4/B5/B7/B8/B12/B13/B14
      • • B18/B19/B20/B25/B26/B28/B29/B30
      • • B32/B66/B71
    • – 4G LTE TDD
      • • B34/B38/B39/B40/B41/B42/B43/B48
    • – MIMO
      • ​• DL 4 X 4 MIMO
      • • B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39
      • • B40/B41/B42/B43/B48/B66

UMTS

    • – WCDMA
      • • B1/B2/B3/B4/B5/B6/B8/B19
  • – 5G SA (Standalone)
    • • Downlink 2.4 Gbps
    • • Uplink 900 Mbps
  • – 5G NSA (Non-Standalone)
    • • Downlink 3.4 Gbps
    • • Uplink 550 Mbps
  • – 4G LTE
    • • Downlink 1.6 Gbps
    • • Uplink 200 Mbps
  • – WCDMA
    • • Downlink 42 Mbps
    • • Uplink 5.76 Mbps
 WLAN  Hardware
  • – Standard: IEEE 802.11 a/b/g/n/ac
  • – 2.4GHz and 5GHz concurrent
  • – Security:
    • • WEP
    • • WPA/WPA2 Personal/Enterprise
    • • Radius
  • – Mode: AP and Client
  • – CPU: MIPS Dual-core 880MHz
  • – Memory: 256Mb Flash, 2Gb DDR3 RAM
  •  – Hardware Watchdog
 Route Protocol & Network features  VPN Tunnel
  • – Static route
  • – RIPv2/OSPF dynamic route
  • – IPV4, IPV6 (Optional)
  • – UDP/TCP/ICMP/NTP/DHCP/HTTP/HTTPS
  • – UPNP/ SNMP
  • – ICMP check, Traffic check
  • – Traceroute, Data capture
  • – Bandwidth graph, Traffic graph
  • – 5G/WAN failover
  • – VLAN
  • – Bandwidth Management
  • – NAT/DMZ
  • – IP Passthrough
  • – IPSec
  • – PPTP/L2TP
  • – GRE
  • – OpenVPN
 Firewall & Filtering  GPS (Optional)
  • – IP packet/Domain/MAC address filtering
  • – NAT
  • – DMZ
  • – GPS sensitivity: -160dBm
  • – GPS accuracy: 2.5m CEP
  • – Update Rate: 1Hz@5Hz
  • – Time to First Fix: Cold Status 27s, Hot status 1s
  • – Protocol: NMEA-0183 2.3V
 Device Management  LED indicators
  • – Local or remote web browser
  • – CLI/Telnet command
  • – M2M management platform (optional)
  • – SSH configuration (optional)
  • – Signal
  • – Error
  • – PWR
  • – WLAN
 Power Consumption  Power Supply
  • – Power Consumption:
    • • Operation: 110mA@+48V DC
    • • Power: 5W
  • 44V DC ~ 57V DC for POE
  • 48V DC/1.25A Power Adapter
 Interfaces  Dimensions & Temperature
  • – 4× Gigabit Ethernet (3xLAN,1xWAN/LAN)
  • – LAN1 & LAN2 Ports support PoE 802.3af/at (30W each)
  • – 8-Pin Terminal Block connector
  • – 4 x DIO, 1 X RS232, 1 X RS485
  • – 1 X DC (4-Pin Plug)
  • – 4× SMA Female 5G/4G/3G antenna sockets
  • – 2× SMA Female WiFi antenna sockets
  • – 2× Standard SIM/R-UIM Slots
  • – 1x expansion USB 3.0
  • – Dimensions: 132mm x 112mm x 44mm
  • – Weight: 400g (not including accessories)
  • – Operating temperature: -30 ~ +75 degree C
  • – Storage temperature: -40 ~ +85 degree C
  • – Relative humidity: <95%   (non-condensing)
  • – Warranty: one year
 Certifications  Package Content
  • – RCM
  • – CE
  • – RoHS
  • – Modem is Telstra approved

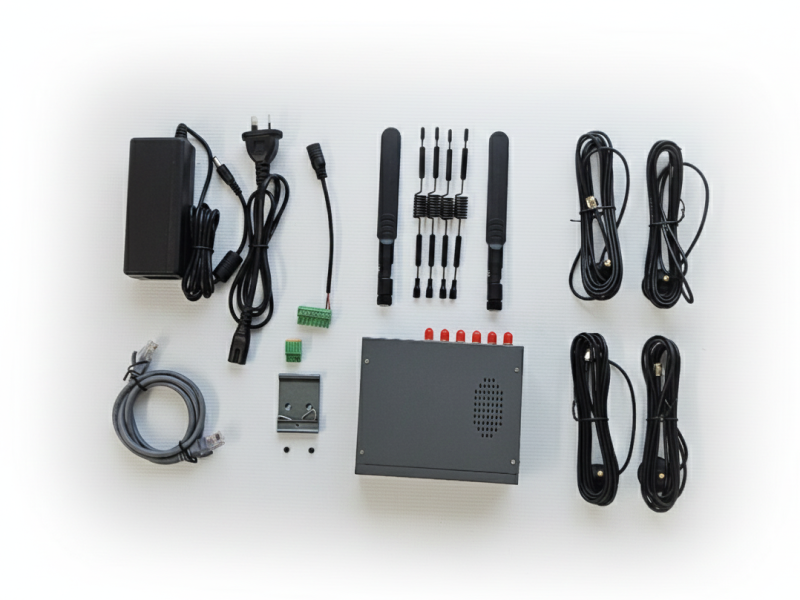

  • – 1x CM550W 5G Router
  • – 2x Wi-Fi dual band 2.4GHz and 5GHz rubber antennas
  • – 4x 5G/4G/3G Magnetic base antennas with 3M cable
  • – 1x Ethernet Cable
  • – 1x Power Supply Adapter
  • – 1x DIN Rail bracket

1. How to insert a SIM card and connect the antennas to the Comset CM550W 5G 4G Router.

2. How to configure VPN IPSec on the Comset CM210Q-W, CM510Q-W and CM550W Routers.

3. How to configure VPN PPTP Server on the Comset CM510Q W and CM550W Routers.

4. How to configure WiFi on the Comset CM210Q-W, CM510Q-W and CM550W Routers.

5. How to configure failover between NBN and 4G/5G on the CM510Q-W and CM550W Routers.

6. How to configure IP Passthrough on the Comset CM210Q-W, CM510Q-W and CM550W routers.
