- High gain indoor/outdoor antenna with magnetic base desktop mount
- Supports all bands across 2G /3G / 4G/ 5G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Pole and wall mount, with stainless steel mounting brackets included
- High gain 9dbi peak gain
- 4.5M terminated with SMA-M connector (using the Magnetic Base)

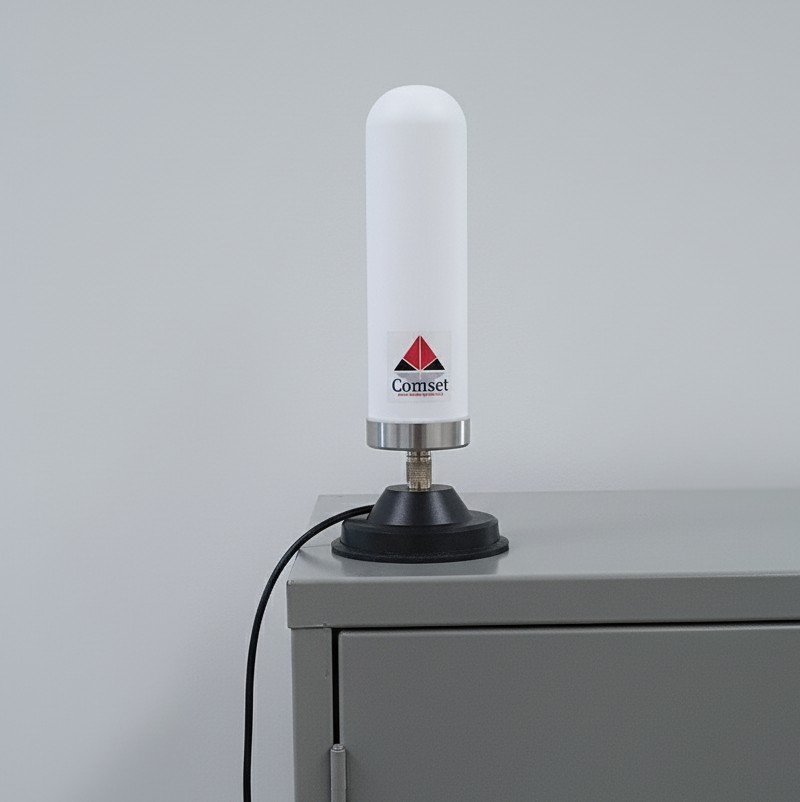

Multiband 5G Antenna 3G+4G+5G Desktop Mount (ANT-LTE-006A-DSK)
Description

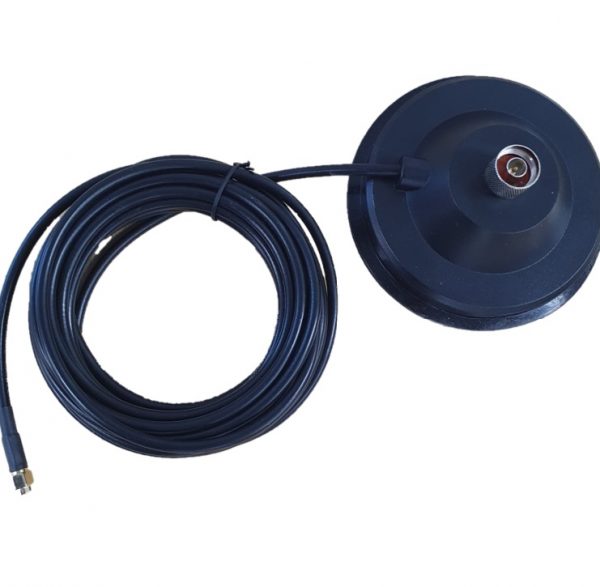

The Comset ANT-LTE-006A-DSK 3G/4G/5G Multiband Indoor/Outdoor Omni Antenna, with 9 dBi peak gain and a wide frequency band of 695- 4800MHz, provides an innovative and future proof solution for 3G, 4G and 5G networks. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band, as well with 5G networks. Incorporating zinc alloy element inside a solid ABS radome, the Comset ANT-LTE-006A-DSK is designed for wall, pole or desktop mounting. Stainless steel mount brackets and U bolts are provided. The antenna is also supplied with a magnetic base stand suitable for desktop mount. The magnetic base is fitted with a RG58 4.5M cable terminated with a SMA-M connector.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 2G /3G / 4G/ 5G (695-4800MHz)
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Pole and wall mount, with stainless steel mounting brackets included
- High gain 9dbi peak gain
- 4.5M terminated with SMA-M connector (using the magnetic base)
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.13 | Yes |
| Telstra 5G | 850 | n5 | 6.56 | Yes |
| Telstra 4G | 1800 | 3 | 8.55 | Yes |
| Telstra 4G | 2100 | 1 | 8.10 | Yes |
| Telstra 4G | 2600 | 7 | 9.5 | Yes |
| Telstra 5G | 3500 | n78 | 9.23 | Yes |
| Optus 4G+ | 700 | 28 | 6.13 | Yes |
| Optus 4G+ | 900 | 8 | 6.95 | Yes |
| Optus 4G+ | 1800 | 3 | 8.55 | Yes |
| Optus 5G | 2100 | n1 | 8.10 | Yes |
| Optus 4G+ | 2300 | 40 | 8.10 | Yes |
| Optus 5G | 2300 | n40 | 8.10 | Yes |
| Optus 4G+ | 2600 | 7 | 9.50 | Yes |
| Optus 5G | 3500 | n78 | 9.23 | Yes |
| Vodafone 4G | 700 | 28 | 6.13 | Yes |
| Vodafone 5G | 700 | n28 | 6.13 | Yes |
| Vodafone 4G | 850 | 5 | 6.56 | Yes |
| Vodafone 5G | 850 | n5 | 6.56 | Yes |
| Vodafone 4G | 900 | 8 | 6.95 | Yes |
| Vodafone 4G | 1800 | 3 | 8.55 | Yes |
| Vodafone 5G | 1800 | n3 | 8.55 | Yes |
| Vodafone 4G | 2100 | 1 | 8.10 | Yes |
| Vodafone 5G | 2100 | n1 | 8.10 | Yes |
| Vodafone 5G | 3500 | n78 | 9.23 | Yes |
| TPG 4G | 700 | 28 | 6.13 | Yes |
| TPG 4G | 2600 | 7 | 9.5 | Yes |
| NBN Co | 2300 | 40 | 8.10 | Yes |
| Model | ANT-LTE-006A-DSK |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 2G/3G/4G/5G |
| Gain | 6.13 dBi @ 698-803MHz |
| 6.56 dBi @ 824-894MHz | |
| 6.95 dBi @ 880-960MHz | |
| 8.55 dBi @ 1710-1880MHz | |
| 7.56 dBi @ 1850-1990MHz | |
| 8.10 dBi @ 1920-2170MHz | |
| 9.5 dBi @ 2490-2700MHz | |
| 9.23 dBi @ 3400-3600MHz | |
| 8.33 dBi @ 4000-4800MHz | |
| Polarisation | Vertical |
| VSWR | <2 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 25⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | ABS |
| Radiating Element Material | Zinc alloy |
| Colour | White |
| Height | 25CM (without bracket) |
| Weight | 0.5Kg (without magnetic base) |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ mast mount/ desktop mount |
| Mounting bracket | Magnetic mount and stainless steel U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Cable | 4.5M |
| Connector | SMA male |
