- Supports all bands across 3G/4G/5G (695-4800MHz)
- Omni-directional high gain 9dBi peak gain
- MIMO with dual polarisation
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Compatible with Telstra and Optus 5G networks
- Suitable for mast and wall mounting
- Waterproof (IP65)
- Mounting brackets included
- 2 x N-Female connectors (coaxial cables not included)
5G/4G/3G Antennas

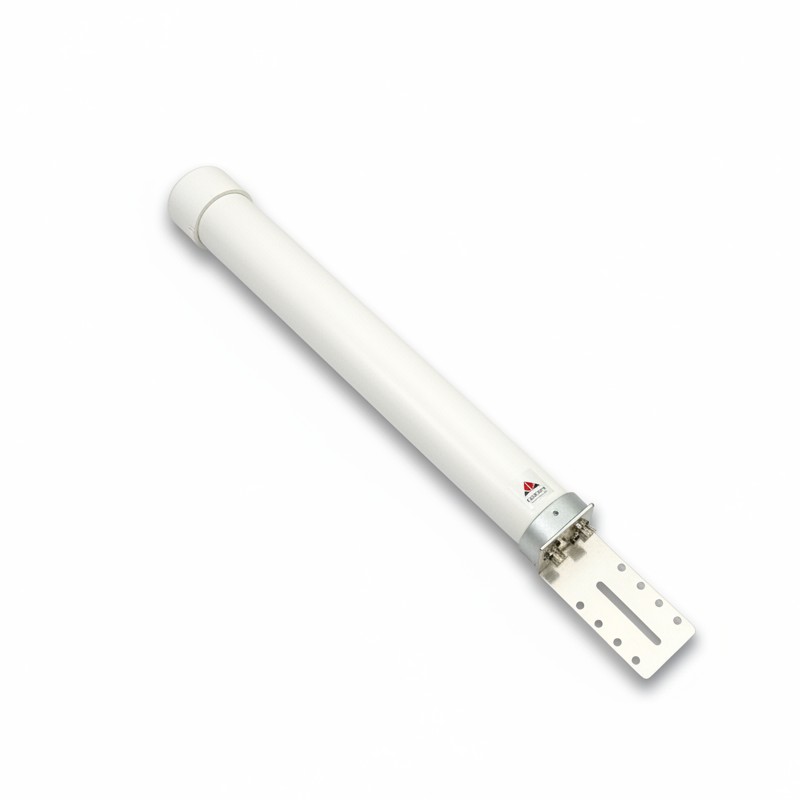

5G MIMO 2X2 Antenna 5G+4G+3G (ANT-WMM-074809)
Description

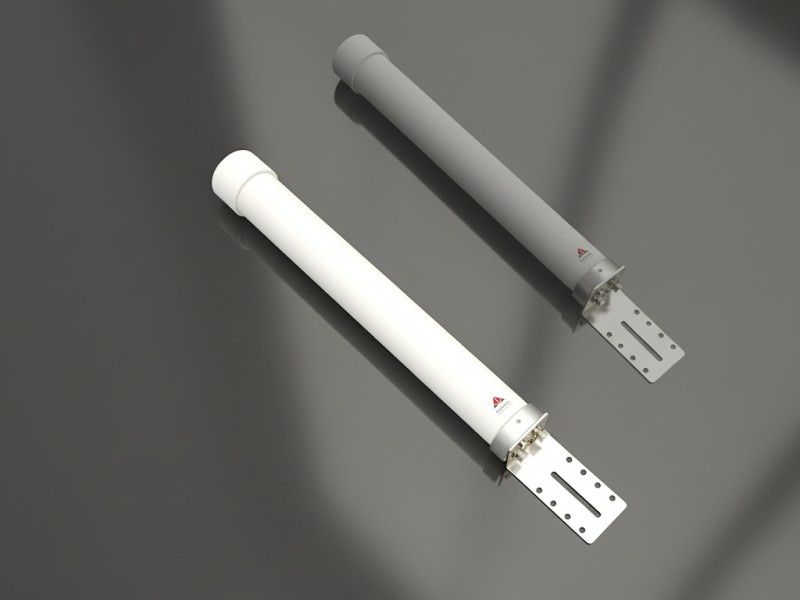

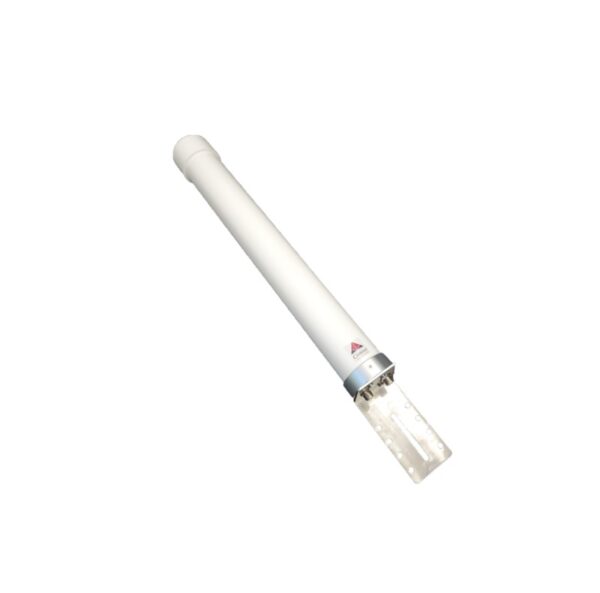

This 5G MIMO 2X2 Antenna (ANT-WMM-074809) is an outdoor high gain MIMO antenna, suitable for 3G, 4G, 4GX and 5G networks. Incorporating two separately fed wideband elements in a single housing, the ANT-WMM-074809 can provide 9dBi peak gain. This is ideal for those seeking increased signal and hence faster, more reliable data speeds on today’s modern 4G/5G networks. It is compatible with 5G networks on the 850, 2100 and 3500MHz frequencies.

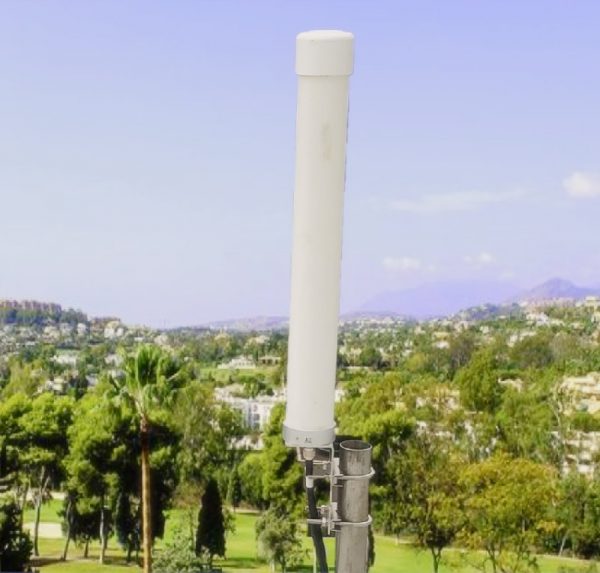

The rugged, weather-resistant housing is designed for mast or wall mounting. This antenna is fitted with two N female connectors, that can be connected to your choice of coaxial cable. We have a range of 2m, 5m, 10m and 15m coaxial cables to choose from. The shorter the cable the better, to reduce signal loss.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 3G/4G/5G (695-4800MHz)
- Omni-directional high gain 9dBi peak gain
- MIMO with dual polarisation
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Compatible with Telstra and Optus 5G networks
- Suitable for mast and wall mounting
- Waterproof (IP65)
- Mounting brackets included
- 2 x N-Female connectors (coaxial cables not included)
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.03 | Yes |
| Telstra 5G | 850 | n5 | 9.12 | Yes |
| Telstra 4G | 1800 | 3 | 7.56 | Yes |
| Telstra 4G | 2100 | 1 | 8.10 | Yes |
| Telstra 4G | 2600 | 7 | 5.16 | Yes |
| Telstra 5G | 3500 | n78 | 7.04 | Yes |
| Optus 4G+ | 700 | 28 | 6.03 | Yes |
| Optus 4G+ | 900 | 8 | 9.12 | Yes |
| Optus 4G+ | 1800 | 3 | 7.56 | Yes |
| Optus 5G | 2100 | n1 | 8.10 | Yes |
| Optus 4G+ | 2300 | 40 | 5.16 | Yes |
| Optus 5G | 2300 | n40 | 5.16 | Yes |
| Optus 4G+ | 2600 | 7 | 5.16 | Yes |
| Optus 5G | 3500 | n78 | 7.04 | Yes |
| Vodafone 4G | 700 | 28 | 6.03 | Yes |
| Vodafone 5G | 700 | n28 | 6.03 | Yes |
| Vodafone 4G | 850 | 5 | 9.12 | Yes |
| Vodafone 5G | 850 | n5 | 9.12 | Yes |
| Vodafone 4G | 900 | 8 | 9.12 | Yes |
| Vodafone 4G | 1800 | 3 | 7.56 | Yes |
| Vodafone 5G | 1800 | n3 | 7.56 | Yes |
| Vodafone 4G | 2100 | 1 | 8.10 | Yes |
| Vodafone 5G | 2100 | n1 | 8.10 | Yes |
| Vodafone 5G | 3500 | n78 | 7.04 | Yes |
| TPG 4G | 700 | 28 | 6.03 | Yes |
| TPG 4G | 2600 | 7 | 5.16 | Yes |
| NBN Co | 2300 | 40 | 5.16 | Yes |
| Model | ANT-WMM-074809 |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 2G/3G/4G/5G |
| Bandwidth | 260/460/100/200MHz |
| Gain | 6.03 dBi @ 698-803MHz |
| 6.45 dBi @ 824-894MHz | |
| 9.12 dBi @ 880-960MHz | |
| 7.56 dBi @ 1710-1880MHz | |
| 8.12 dBi @ 1850-1990MHz | |
| 8.10 dBi @ 1920-2170MHz | |
| 5.16 dBi @ 2490-2700MHz | |
| 7.04 dBi @ 3400-3600MHz | |
| 6.82 dBi @ 4000-4800MHz | |
| Polarisation | Vertical |
| VSWR | <2:1 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 18⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | PVC |
| Colour | White |
| Dimensions | Ø75x640mm (excluding bracket) |
| Weight | 1.9Kg |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ mast mount |
| Mounting bracket | U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Coaxial cables | Not included |
| Connectors | 2 x N-Female |
