LTE MIMO Panel Antenna 3G+4G+5G (ANT-PNL-10SP)

  • Directional high gain 2 x 10 dBi peak gain
  • Compatible with 3G, 4G and 5G networks
  • Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
  • Carrier Aggregation ready

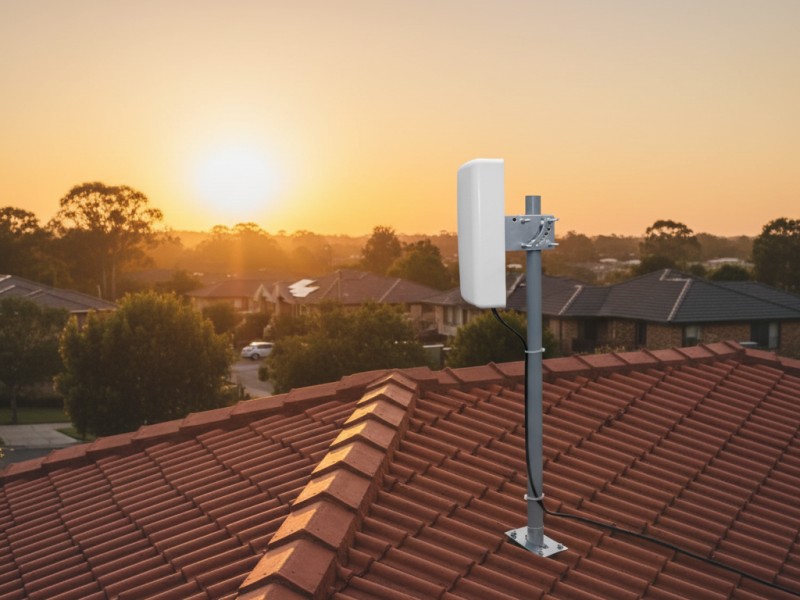

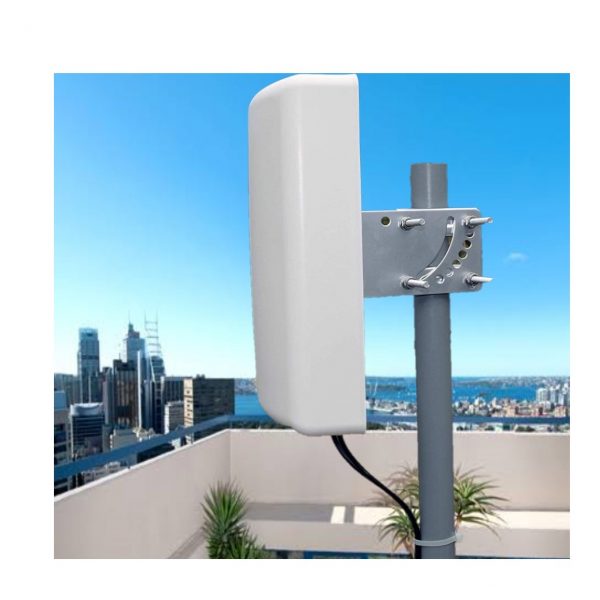

  • Pole or wall mountable
  • Waterproof (IP65) Lightweight

Description

The ANT-PNL-10SP is a 3G/4G/5G MIMO Panel Antenna designed to enhance signal coverage over long distances. The directional dual polarised design, with two radiating elements one vertically polarised and the other horizontally polarised, offers dramatically increased 3G, 4G & 5G data signals and hence faster and more reliable data speeds.

The ANT-PNL-10SP offers a wide  frequency band of 698-960/1710-3800MHz ideally suitable for 3G, 4G and 5G networks.  The weatherproof housing is designed for pole or wall mounting and is supplied with 2 x 10 meters of low loss RG58 cable terminated with SMA male connectors.

Click here to find your nearest 3G/4G/5G Cellular Tower.

Reseller Enquiries
  • Directional high gain 2 x 10 dBi peak gain
  • Compatible with 3G, 4G and 5G networks
  • Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
  • Carrier Aggregation ready
  • Pole or wall mountable
  • Waterproof (IP65) Lightweight

Network Compatibility:

Carrierf (MHz)BandGain (dBi)Compatibility
Telstra (4GX)700287Yes
Telstra 4G1800310Yes
Telstra 4G2100110Yes
Telstra 4G2600710Yes
Telstra 5G3500n7810Yes
Optus (4G Plus)700287Yes
Optus 4G90087Yes
Optus 4G1800310Yes
Optus 4G23004010Yes
Optus 4G2600710Yes
Optus 5G3500n7810Yes
Vodafone (4G+)85057Yes
Vodafone 4G90087Yes
Vodafone 4G1800310Yes
Vodafone 4G2100110Yes
TPG 4G700287Yes
TPG 4G2600710Yes
NBN Co23004010Yes

Model

ANT-PNL-10SP

Frequency

698-960MHz, 1710-3800MHz

Nominal Gain dBi

2 x 7 dBi @ 698-960MHz

2 x 10 dBi @ 1710-3800MHz

VSWR

< 1.5

Polarisation

Directional

Beamwidth

Horizontal 70⁰/75⁰

Vertical 75⁰/60⁰

F/B Ratio

15/20 dB

Max Power

50 W

Nominal Impedance

50 Ω

Lightning Protection

DC Ground

Radome Material

ABS

Colour

White

Dimensions mm

H 300, W 183, D 70

Pole Diameter

30 ~ 50 mm

Weight

1.56 kg

Mount

Pole mount, Wall mount

Working Temperature

-40 ⁰C ~ +65 ⁰C

Termination

2 x 10m of RG58 fitted with SMA (M) connector
