Dome Antenna Five-In-One LTE2/WIFI2/GPS (ANT-DOME-5IN1)

  • Versatile Five-In-One antenna (2 x LTE; 2 x WiFi; 1 x GPS)

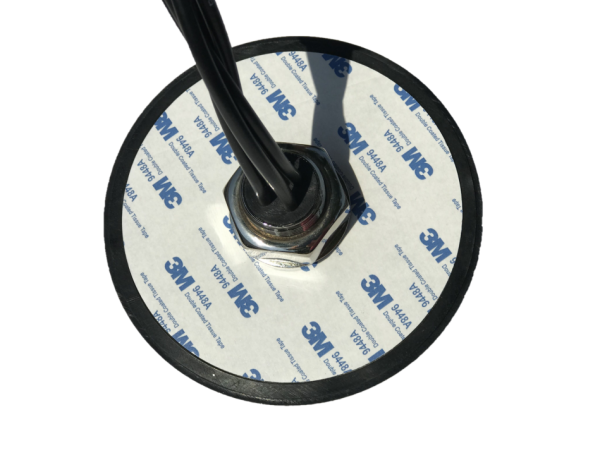

  • Screw-mount
  • Vandal resistant design
  • Excellent bandwidth
  • Compatible with 3G, 4G and 5G networks
  • 5 x 3M cables terminated with SMA-M

Description

The ANT-DOME-5IN1 is a compact and heavy-duty antenna incorporating five antenna elements. Two of these elements are for 3G, 4G and 5G networks covering frequencies between 698 and 3800 MHz; two elements are for 2.4GHz and 5GHz WiFi; and one element is for GPS.
The ANT-DOME-5IN1 antenna is IP67 rated which allows protection against dust and water penetration. It can be mounted externally on a vehicle or on any flat surface such as a kiosk or an ATM machine. The screw-mount kit offers anti-vandal security for peace of mind. It is the perfect solution for M2M applications such as telematics, transportation and remote monitoring applications.
The ANT-DOME-5IN1 has its own ground-plane and can radiate on any mounting surface such as metal or plastic without affecting its performance.
Click here to find your nearest 3G/4G/5G Cellular Tower.
Reseller Enquiries
  • Versatile Five-In-One antenna (2 x LTE; 2 x WiFi; 1 x GPS)
  • Screw-mount
  • Vandal resistant design
  • Excellent bandwidth
  • Compatible with 3G, 4G and 5G networks
  • 5 x 3M cables terminated with SMA-M

Network Compatibility:

Carrierf (MHz)BandGain (dBi)Compatibility
Telstra (4GX)700283Yes
Telstra 4G180035.2Yes
Telstra 4G210015.2Yes
Telstra 4G260074Yes
Telstra 5G3500n783Yes
Optus (4G Plus)700283Yes
Optus 4G90083Yes
Optus 4G180035.2Yes
Optus 4G2300404Yes
Optus 4G260074Yes
Optus 5G3500n783Yes
Vodafone (4G+)85053Yes
Vodafone 4G90083Yes
Vodafone 4G180035.2Yes
Vodafone 4G210015.2Yes
TPG 4G700283Yes
TPG 4G260074Yes
NBN Co2300404Yes

Electrical

  1. LTE Elements:

Frequency Range           698-960MHz

1710-2170MHz

2300-2700MHz

2900-3800MHz

V.S.W.R                          3 Max

Gain                                3/5/6/7dBi

Polarization                     Vertical

Impedance                      50Ω

  1. GPS(GLONASS) Element:

Frequency Range           1575.42MHZ±3 MHz/1602-1610MHz

Polarization Type            RHCP

Impedance                      50Ω

LNA Gain                        28±2dB Typical

Noise Figure                    3-3.5dB

V.S.W.R                          <2.0

DC Voltage                      2.2-5.0V

DC current                       5-15mA

  1. WIFI Elements:

Frequency Range           2400-2500MHz,4900-5850MHz

V.S.W.R                          <2.0

Gain                                6/8dBi

Polarization                     Linear

Impedance                      50Ω

Mechanical

Housing                           Black

Cable                               GPS: RG174

                                        LTE & WiFi: RG58

Length                             3M

Connector                       SMA(M)

Operation Temperature -40℃~+85℃

Humidity                          65%-95%RH

Waterproof                      IP67

Radome Material             ABS

Mount way                       Screw mount

Dimensions                     Ф143.5×80mm

Weight                             1.2KG
