- High gain outdoor antenna
- Supports all bands across 2G /3G / 4G/ 5G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Pole and wall mount, with 316 stainless steel mounting bracket included
- High gain 9dbi peak gain
- N-Female connector (cable not included)
5G/4G/3G Antennas
Multiband 5G Outdoor Antenna 3G+4G+5G (ANT-LTE-006A)
Description
The Comset Multiband 5G Outdoor Antenna (ANT-LTE-006A 3G/4G/5G Multiband) provides an innovative and future proof solution for 3G, 4G and 5G networks. It has a 9 dBi peak gain and a wide frequency band of 695- 4800MHz. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band, as well with 5G networks.

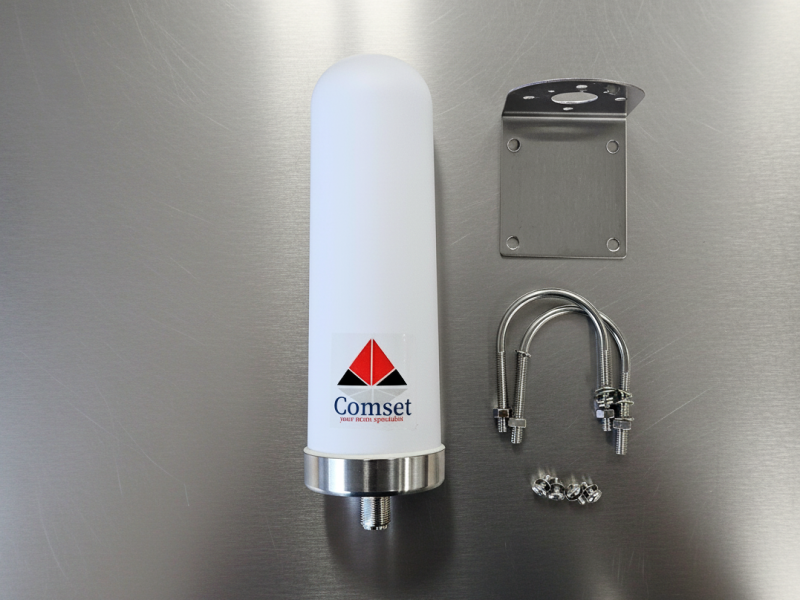

This 5G Outdoor Antenna incorporates a zinc alloy element inside a solid ABS radome. It is suitable for outdoor harsh weather conditions. It is designed for wall or pole mounting.

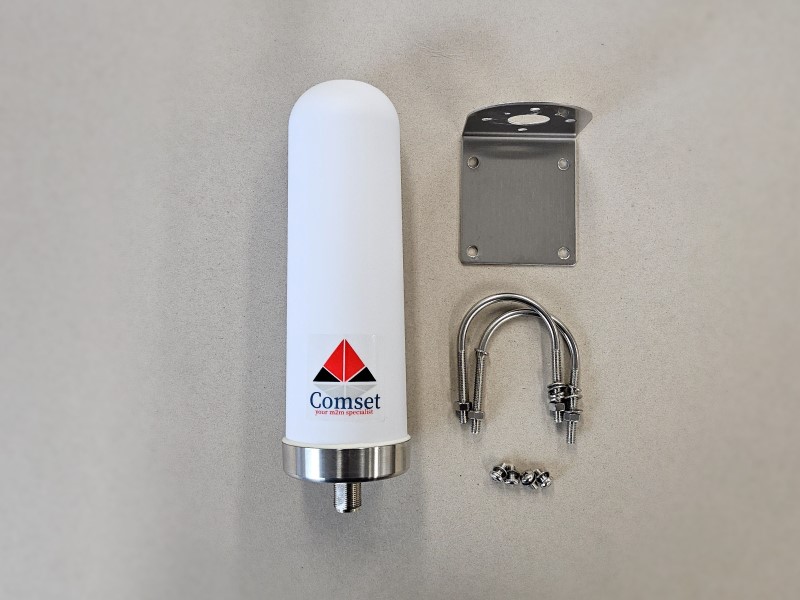

The antenna comes with a stainless steel mount bracket (316) and U bolts. It also comes with a N-Female connector that can be connected to your choice of coaxial cable.

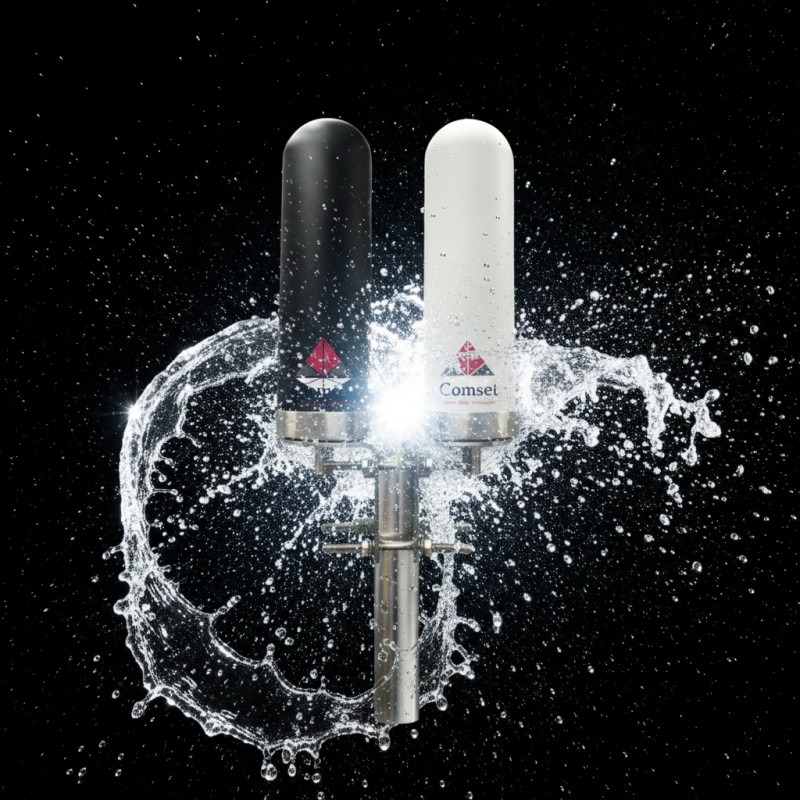

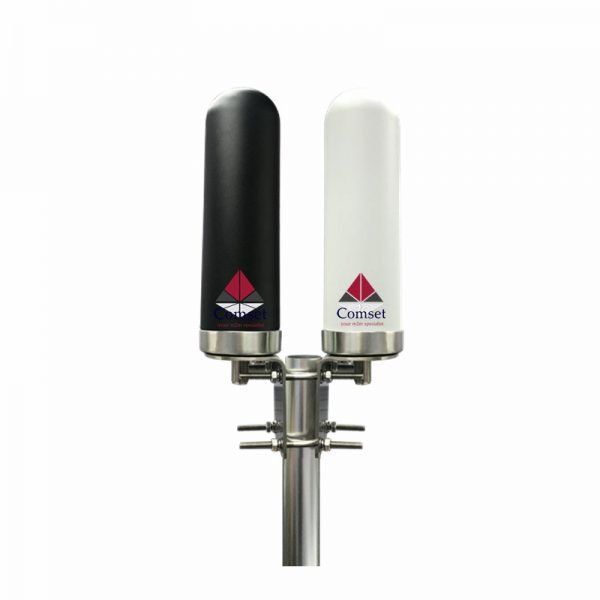

There are two models available: ANT-LTE-006A in white, and ANT-LTE-006B in black.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 2G /3G / 4G/ 5G (695-4800MHz)
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Pole and wall mount, with 316 stainless steel mounting bracket included
- High gain 9dbi peak gain
- N-Female connector (cable not included)
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.13 | Yes |
| Telstra 5G | 850 | n5 | 6.56 | Yes |
| Telstra 4G | 1800 | 3 | 8.55 | Yes |
| Telstra 4G | 2100 | 1 | 8.10 | Yes |
| Telstra 4G | 2600 | 7 | 9.5 | Yes |
| Telstra 5G | 3500 | n78 | 9.23 | Yes |
| Optus 4G+ | 700 | 28 | 6.13 | Yes |
| Optus 4G+ | 900 | 8 | 6.95 | Yes |
| Optus 4G+ | 1800 | 3 | 8.55 | Yes |
| Optus 5G | 2100 | n1 | 8.10 | Yes |
| Optus 4G+ | 2300 | 40 | 8.10 | Yes |
| Optus 5G | 2300 | n40 | 8.10 | Yes |
| Optus 4G+ | 2600 | 7 | 9.50 | Yes |
| Optus 5G | 3500 | n78 | 9.23 | Yes |
| Vodafone 4G | 700 | 28 | 6.13 | Yes |
| Vodafone 5G | 700 | n28 | 6.13 | Yes |
| Vodafone 4G | 850 | 5 | 6.56 | Yes |
| Vodafone 5G | 850 | n5 | 6.56 | Yes |
| Vodafone 4G | 900 | 8 | 6.95 | Yes |
| Vodafone 4G | 1800 | 3 | 8.55 | Yes |
| Vodafone 5G | 1800 | n3 | 8.55 | Yes |
| Vodafone 4G | 2100 | 1 | 8.10 | Yes |
| Vodafone 5G | 2100 | n1 | 8.10 | Yes |
| Vodafone 5G | 3500 | n78 | 9.23 | Yes |
| TPG 4G | 700 | 28 | 6.13 | Yes |
| TPG 4G | 2600 | 7 | 9.5 | Yes |
| NBN Co | 2300 | 40 | 8.10 | Yes |
| Model | ANT-LTE-006A |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 2G/3G/4G/5G |
| Gain | 6.13 dBi @ 698-803MHz |
| 6.56 dBi @ 824-894MHz | |
| 6.95 dBi @ 880-960MHz | |
| 8.55 dBi @ 1710-1880MHz | |
| 7.56 dBi @ 1850-1990MHz | |
| 8.10 dBi @ 1920-2170MHz | |
| 9.5 dBi @ 2490-2700MHz | |
| 9.23 dBi @ 3400-3600MHz | |
| 8.33 dBi @ 4000-4800MHz | |
| Polarisation | Vertical |
| VSWR | <2 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 25⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | ABS |
| Radiating Element Material | Zinc alloy |
| Colour | White |
| Height | 25CM (32CM with bracket) |
| Weight | 0.5Kg |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ mast mount |
| Mounting bracket | Stainless steel U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Cable | Not included |
| Connector | N-Female |
