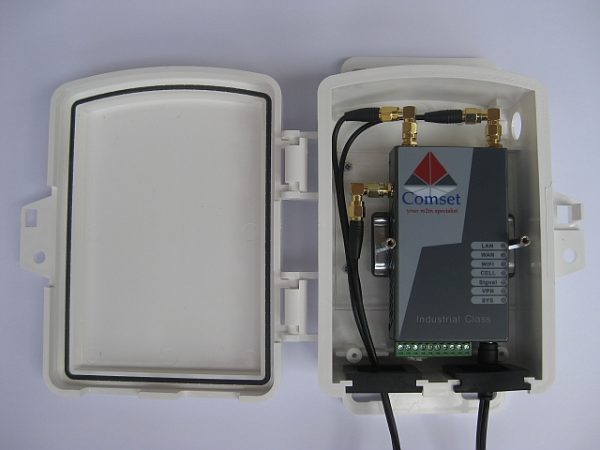

CM-ENCL01 Outdoor Enclosure

  • Designed for surface/wall-mount and pole mount applications, its entry port accepts up to 2.5cm diameter cable bundles.
  • Removable rubber grommet in the entry/exit port makes servicing faster and easier.
  • Add a cable gland by drilling a hole through the grommet.
  • An “F” termination is included for an optional security locking connector (sold separately).
  • Mount with wood-screws or bolts or on a pole: U-bolt brackets included.

* minor assembly required

Reseller Enquiries
  • Material: UV resistant, flame retardant PVC (capable of withstanding high-impact)
  • Standard Colour: White
  • Dimensions: 158.75 x 57.15 x 200 mm
  • Weight: 490g
  • Save up to 40% over metal alternatives with high impact and flame retardant engineered PVC or optional high temperature polycarbonate
  • Increase customization with an internal mounting hole pattern that maximizes flexibility of equipment placement within the box.
  • Allow 24/7 secure access by a service technician with the available override or F81 locking mechanism.
  • 180 degree hinged lid and dual snap locks provides installers with easy and open access for installation and repair.

To waterproof any cable connections that might be exposed to the elements: Use silicone grease: Flood the cable connections (Power, Ethernet, coax cables) with silicone grease to waterproof them.
