- Heavy duty Barrel spring vehicle antenna
- Supports all bands across 2G /3G / 4G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Bull bar, pole and wall mount, with mounting brackets included
- High gain 9 dBi peak gain
- Low loss RG58 4.5 m cable terminated with a SMA-male connector
5G/4G/3G Antennas
Vehicle LTE Antenna 3G+4G+4GX (ANT-VHCL-4SP)
Description

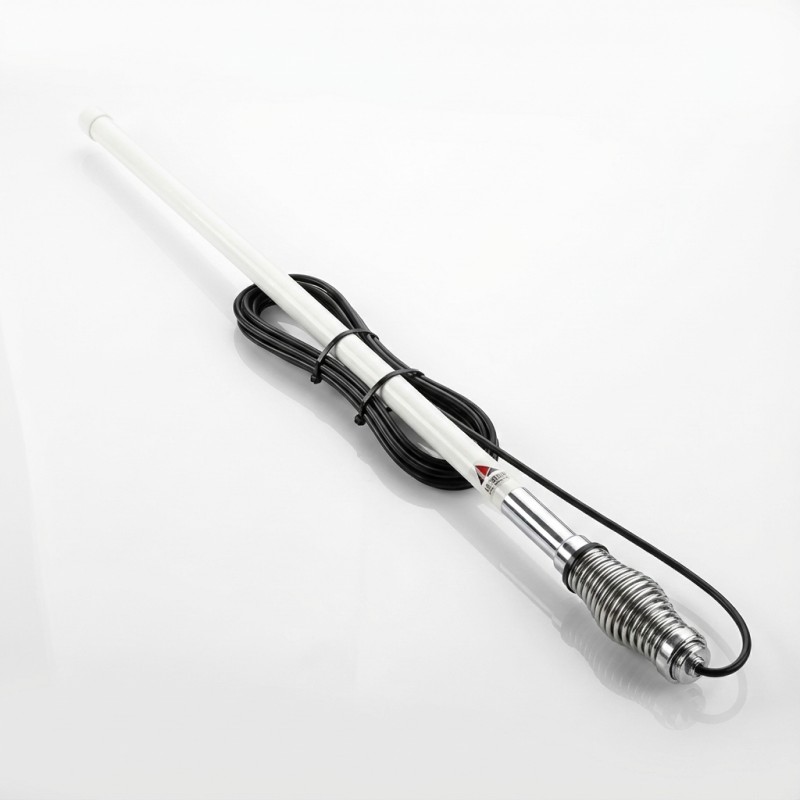

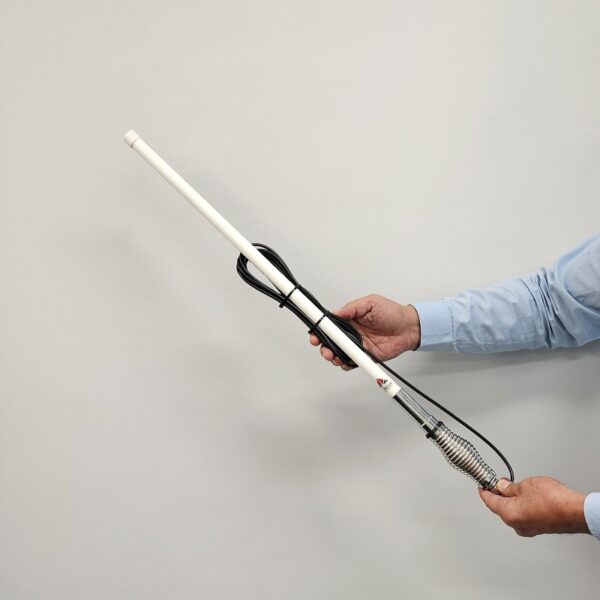

The Comset ANT-VHCL-4SP 3G/4G/4GX Multiband Vehicle LTE Antenna, with 9 dBi peak gain and a wide frequency band of 698- 2700MHz, provides an innovative and future proof solution for 2G, 3G and 4G networks. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band. Incorporating strong copper and aluminium alloy components with a fibreglass whip on a barrel spring mount, this LTE Antenna is suitable for vehicle applications in outdoor harsh weather conditions. It is is designed for bull bar, wall or pole mounting. The antenna comes with a Barrel Spring and Mount brackets. It also includes a 4.5m low loss RG58 coaxial cable, terminated with a SMA male connector.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 2G /3G / 4G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Bull bar, pole and wall mount, with mounting brackets included
- High gain 9 dBi peak gain
- Low loss RG58 4.5 m cable terminated with a SMA-male connector
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra (4GX) | 700 | 28 | 4.5 | Yes |
| Telstra 4G | 1800 | 3 | 6 | Yes |
| Telstra 4G | 2100 | 1 | 8 | Yes |
| Telstra 4G | 2600 | 7 | 9 | Yes |
| Optus (4G Plus) | 700 | 28 | 4.5 | Yes |
| Optus 4G | 900 | 8 | 5 | Yes |
| Optus 4G | 1800 | 3 | 6 | Yes |
| Optus 4G | 2300 | 40 | 8 | Yes |
| Optus 4G | 2600 | 7 | 9 | Yes |
| Vodafone (4G+) | 850 | 5 | 4.5 | Yes |
| Vodafone 4G | 900 | 8 | 5 | Yes |
| Vodafone 4G | 1800 | 3 | 6 | Yes |
| Vodafone 4G | 2100 | 1 | 8 | Yes |
| TPG 4G | 700 | 28 | 4.5 | Yes |
| TPG 4G | 2600 | 7 | 9 | Yes |
| NBN Co | 2300 | 40 | 8 | Yes |
| Model | ANT-VHCL-4SP |
| Electrical Data | |
| Frequency | 698-960MHz, 1710-2170MHz, 2300-2700MHz |
| Operational bands | 2G/3G/4G/4GX |
| Peak Gain | 4.5 dBi @ 700MHz |
| 4.5 dBi @ 850MHz | |
| 5 dBi @ 900MHz | |
| 6 dBi @ 1800MHz | |
| 8 dBi @ 2100MHz | |
| 9 dBi @ 2600MHz | |
| Polarisation | Vertical |
| VSWR | <1.5 |
| Horizontal Beamwidth | 180⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Material | Fibreglass, Copper, Aluminium Alloy |
| Colour | White |
| Diameter | 19.6 mm |
| Length (with Barrel Spring) | 770 mm |
| Length (without Barrel Spring) | 644 mm |
| Weight | 1.1Kg |
| Working Temperature | -50 ⁰C ~ +80 ⁰C |
| Mounting Data | |
| Mounting bracket | L-Shape Bracket Included |
| Hold Pole Diameter | Ø25 – Ø40 mm |
| Cable | RG58 4.5m |
| Connector | SMA male |
E-Plane
H-Plane
