- Versatile combination antenna (1 x 5G/LTE; 1 x GPS)
- Screw-mount
- Vandal resistant design
- Dust and water resistant
- Super low profile
- Compatible with 3G, 4G and 5G networks
- 2 x 3M cables terminated with SMA-M
Caravan Antennas 3G/4G/5G

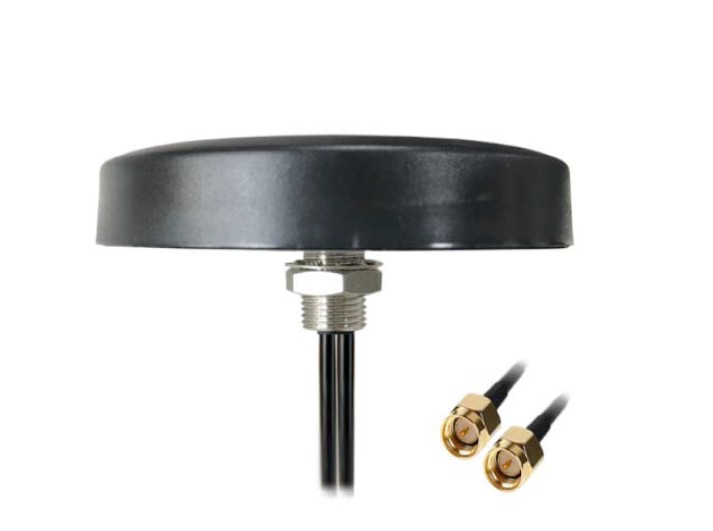

Super Low Profile Antenna LTE/GPS (ANT-SLPA-3SP)
Description
The Comset ANT-SLPA-3SP is a compact and heavy-duty antenna incorporating two antenna elements. One element is for 3G, 4G and 5G networks covering frequencies between 698 and 3800 MHz and one element is for GPS.
The ANT-SLPA-3SP antenna is IP67 rated which offers protection against dust and water penetration. It has its own ground-plane and can radiate on any mounting surface such as metal or plastic without affecting its performance. This makes the antenna perfect for mounting externally on a vehicle or on any flat surface, such as a kiosk or an ATM machine. The screw-mount kit offers anti-vandal security for peace of mind. It is the perfect solution for M2M applications such as telematics, transportation and remote monitoring applications.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
Available on backorder
- Versatile combination antenna (1 x 5G/LTE; 1 x GPS)
- Screw-mount
- Vandal resistant design
- Dust and water resistant
- Super low profile
- Compatible with 3G, 4G and 5G networks
- 2 x 3M cables terminated with SMA-M
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 3 | Yes |
| Telstra 5G | 850 | n5 | 3 | Yes |
| Telstra 4G | 1800 | 3 | 3 | Yes |
| Telstra 4G | 2100 | 1 | 3 | Yes |
| Telstra 4G | 2600 | 7 | 3 | Yes |
| Telstra 5G | 3500 | n78 | 3 | Yes |
| Optus 4G+ | 700 | 28 | 3 | Yes |
| Optus 4G+ | 900 | 8 | 3 | Yes |
| Optus 4G+ | 1800 | 3 | 3 | Yes |
| Optus 5G | 2100 | n1 | 3 | Yes |
| Optus 4G+ | 2300 | 40 | 3 | Yes |
| Optus 5G | 2300 | n40 | 3 | Yes |
| Optus 4G+ | 2600 | 7 | 3 | Yes |
| Optus 5G | 3500 | n78 | 3 | Yes |
| Vodafone 4G | 700 | 28 | 3 | Yes |
| Vodafone 5G | 700 | n28 | 3 | Yes |
| Vodafone 4G | 850 | 5 | 3 | Yes |
| Vodafone 5G | 850 | n5 | 3 | Yes |
| Vodafone 4G | 900 | 8 | 3 | Yes |
| Vodafone 4G | 1800 | 3 | 3 | Yes |
| Vodafone 5G | 1800 | n3 | 3 | Yes |
| Vodafone 4G | 2100 | 1 | 3 | Yes |
| Vodafone 5G | 2100 | n1 | 3 | Yes |
| Vodafone 5G | 3500 | n78 | 3 | Yes |
| TPG 4G | 700 | 28 | 3 | Yes |
| TPG 4G | 2600 | 7 | 3 | Yes |
| NBN Co | 2300 | 40 | 3 | Yes |
| MODEL | · ANT-SLPA-3SP |
| ELECTRICAL DATA – LTE | |
| Frequency | · 698 – 960 MHz |
| · 1710 – 3800 MHz | |
| Gain | · 3 dBi |
| Polarisation | · Vertical |
| Voltage Standing Wave Ratio | · < 2.0 |
| Impedance | · 50 Ω |
| ELECTRICAL DATA – GPS (GLONASS) | |
| Dielectric Antenna | |
| Frequency | · 1575.42 ±3MHz |
| Gain | · 3 dBi |
| Polarisation | · RHCP |
| Voltage Standing Wave Ratio | · < 1.5 |
| Impedance | · 50 Ω |
| LNA | |
| LNA Gain | · 28 ± 2 dB (typical) |
| Polarisation Type | · RHCP |
| Voltage Standing Wave Ratio | · < 2.0 |
| Impedance | · 50 Ω |
| Noise Figure | · 1.5 dB |
| DC Voltage | · 2.7/3.0/3.3/5.0/3.0 to 5.0 V |
| DC Current | · 11 mA Max |
| MECHANICAL DATA | |
| Colour | · Black |
| Cable | · LTE & GPS: RG174 |
| · 3 m length | |
| · SMA male connector | |
| Working Temperature | · -40 °C to +80 °C |
| Humidity | · 55% – 75% RH |
| IP Rating | · IP67 – dust tight, and water resistant |
| Radome Material | · ABS |
| Mount | · Screw mount |
| Dimensions | · Ø80 x 20 mm |
| Weight | · 120 g |
