- Supports all bands across 3G/4G/5G (695-4800MHz)
- Omni-directional high gain 9dBi peak gain
- MIMO 4×4
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Compatible with Telstra and Optus 5G networks
- Suitable for mast and wall mounting

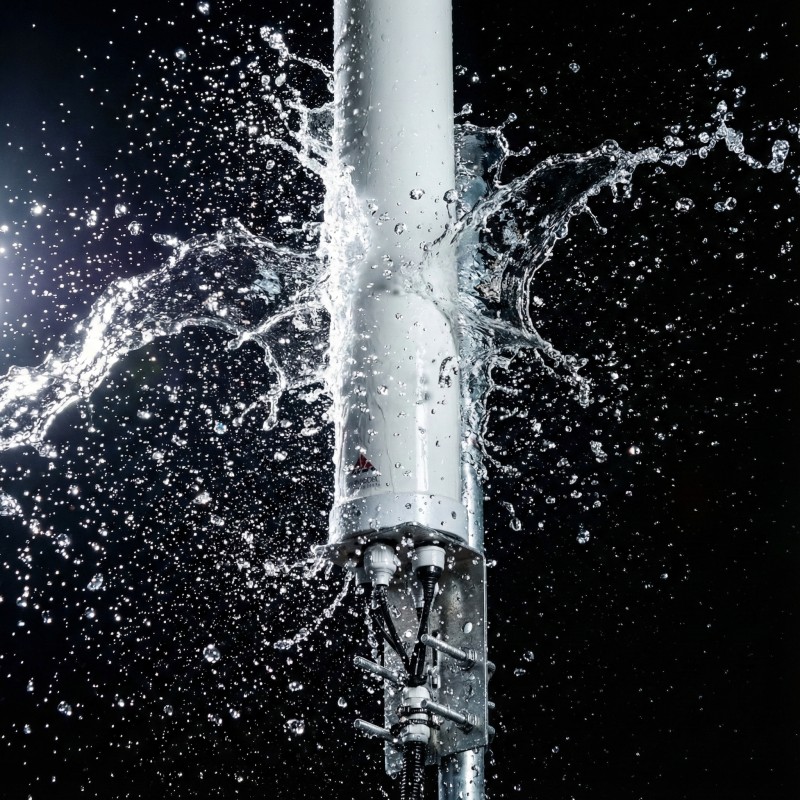

- Waterproof (IP67)
- Mounting brackets included
- 4 x N-Female connectors (coaxial cables not included)
5G/4G/3G Antennas
5G MIMO 4X4 Antenna 5G+4G+3G (ANT-WMM4X4-074809)
Description

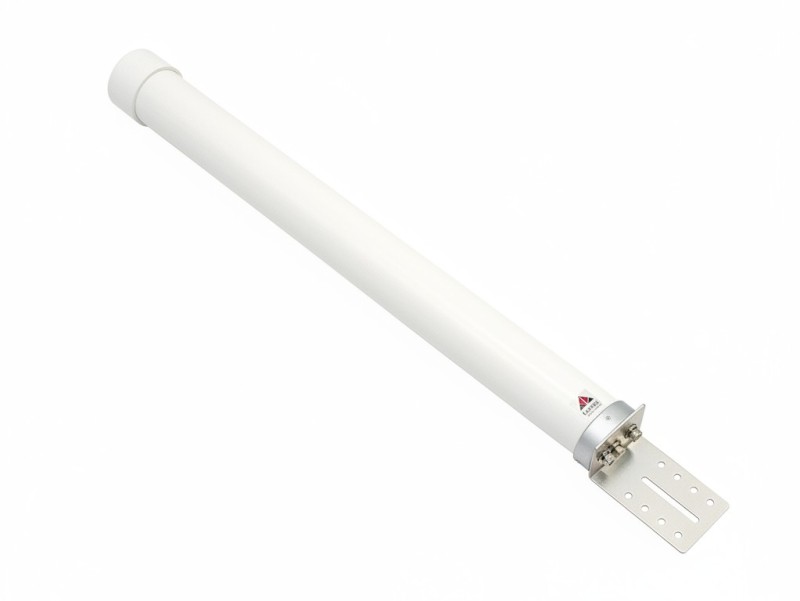

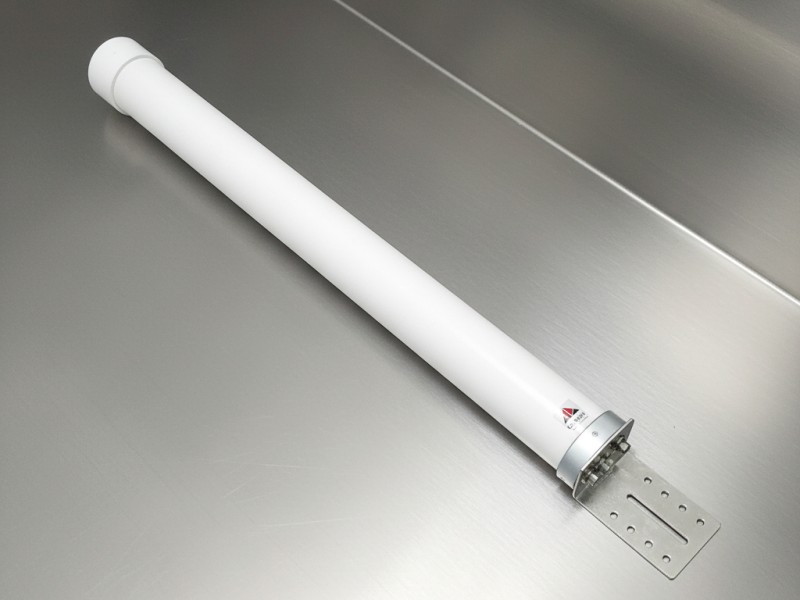

The 5G MIMO 4X4 Antenna (ANT-WMM4X4-074809) is an outdoor high gain antenna, suitable for 3G, 4G, 4GX and 5G networks. Incorporating four separately fed wideband elements in a single housing, the ANT-WMM4X4-074809 is capable of providing 9dBi peak gain ideal for those seeking increased signal and hence faster, more reliable data speeds on today’s modern 4G/5G networks. It is compatible with 5G networks on the 850, 2100 and 3500MHz frequencies.

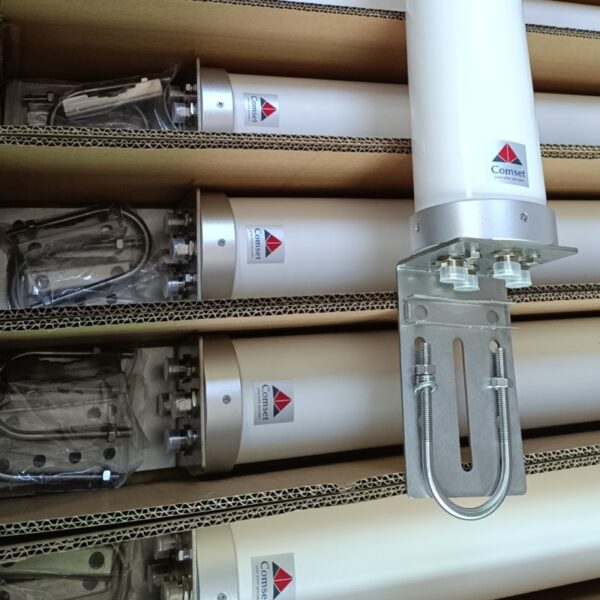

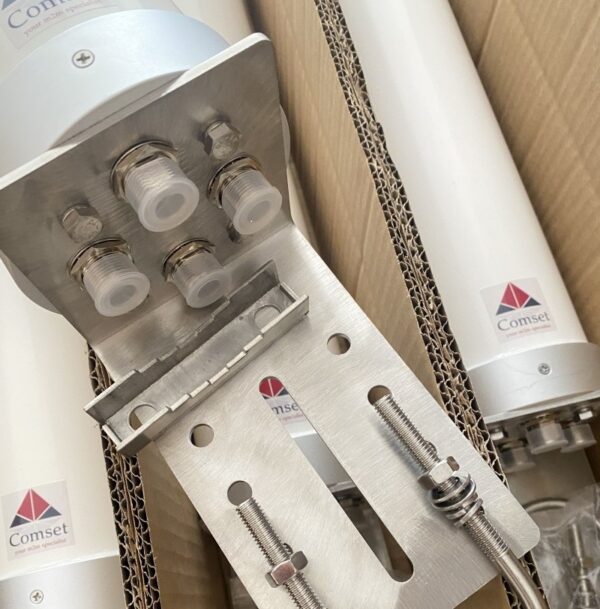

The rugged, weather resistant housing is designed for mast or wall mounting. This 5G MIMO Antenna is fitted with four N female connectors, that can be connected to your choice of coaxial cable. We have a range of 2m, 5m, 10m, 15m and 20m coaxial cables to choose from. The shorter the cable the better, to reduce signal loss.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 3G/4G/5G (695-4800MHz)
- Omni-directional high gain 9dBi peak gain
- MIMO 4×4
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Compatible with Telstra and Optus 5G networks
- Suitable for mast and wall mounting
- Waterproof (IP65)
- Mounting brackets included
- 4 x N-Female connectors (coaxial cables not included)
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.13 | Yes |
| Telstra 5G | 850 | n5 | 6.2 | Yes |
| Telstra 4G | 1800 | 3 | 6.85 | Yes |
| Telstra 4G | 2100 | 1 | 7.67 | Yes |
| Telstra 4G | 2600 | 7 | 7.39 | Yes |
| Telstra 5G | 3500 | n78 | 8.5 | Yes |
| Optus 4G+ | 700 | 28 | 6.13 | Yes |
| Optus 4G+ | 900 | 8 | 5.42 | Yes |
| Optus 4G+ | 1800 | 3 | 6.85 | Yes |
| Optus 5G | 2100 | n1 | 7.67 | Yes |
| Optus 4G+ | 2300 | 40 | 5.16 | Yes |
| Optus 5G | 2300 | n40 | 5.16 | Yes |
| Optus 4G+ | 2600 | 7 | 7.39 | Yes |
| Optus 5G | 3500 | n78 | 8.5 | Yes |
| Vodafone 4G | 700 | 28 | 6.13 | Yes |
| Vodafone 5G | 700 | n28 | 6.13 | Yes |
| Vodafone 4G | 850 | 5 | 6.2 | Yes |
| Vodafone 5G | 850 | n5 | 6.2 | Yes |
| Vodafone 4G | 900 | 8 | 5.42 | Yes |
| Vodafone 4G | 1800 | 3 | 6.85 | Yes |
| Vodafone 5G | 1800 | n3 | 6.85 | Yes |
| Vodafone 4G | 2100 | 1 | 7.67 | Yes |
| Vodafone 5G | 2100 | n1 | 7.67 | Yes |
| Vodafone 5G | 3500 | n78 | 8.5 | Yes |
| TPG 4G | 700 | 28 | 6.13 | Yes |
| TPG 4G | 2600 | 7 | 7.39 | Yes |
| NBN Co | 2300 | 40 | 5.16 | Yes |
| Model | ANT-WMM4X4-074809 |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 2G/3G/4G/5G |
| Bandwidth | 260/460/100/200MHz |
| Gain | 6.13 dBi @ 698-803MHz |
| 6.2 dBi @ 824-894MHz | |
| 5.42 dBi @ 880-960MHz | |
| 6.85 dBi @ 1710-1880MHz | |
| 6.5 dBi @ 1850-1990MHz | |
| 7.67 dBi @ 1920-2170MHz | |
| 7.39 dBi @ 2490-2700MHz | |
| 8.5 dBi @ 3400-3600MHz | |
| 9.1 dBi @ 4000-4800MHz | |
| Polarisation | Vertical x 4 |
| VSWR | <1.5 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 18⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | ABS |
| Colour | White |
| Dimensions | Ø90x930mm (excluding bracket) |
| Weight | 3.4 Kg |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ Mast mount |
| Mounting bracket | U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Coaxial cables | Not included |
| Connectors | 4 x N-Female |
