MIMO 4X4 5G Outdoor Antenna (ANT-MIMO4X4-006B-X)
Description

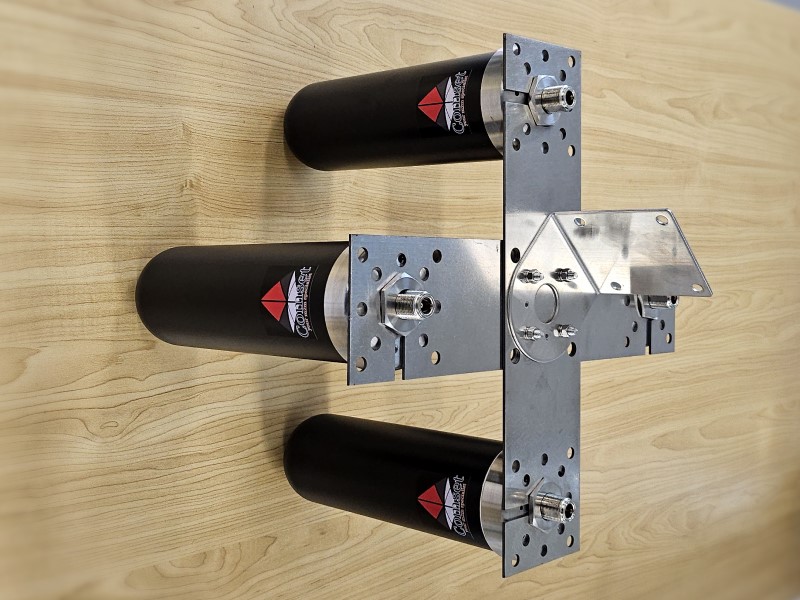

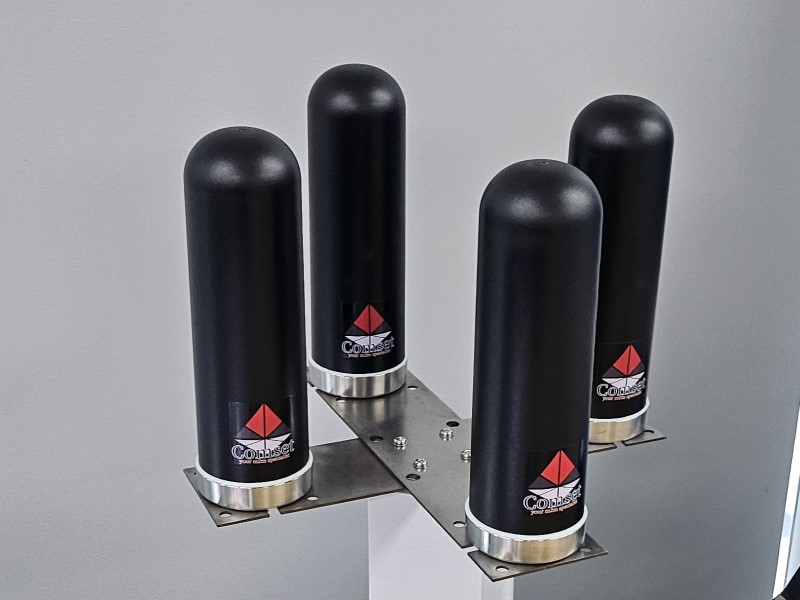

The Comset MIMO4X4 Multiband 5G Outdoor Antenna ANT-MIMO4X4-006B-X consists of four 5G antennas ANT-LTE-006B assembled together to provide a powerful MIMO 4X4 solution. This antenna delivers an innovative and future proof solution for 3G, 4G and 5G networks. Each of the four antennas has a 9 dBi peak gain and a wide frequency band of 695- 4800MHz. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band, as well with 5G networks.

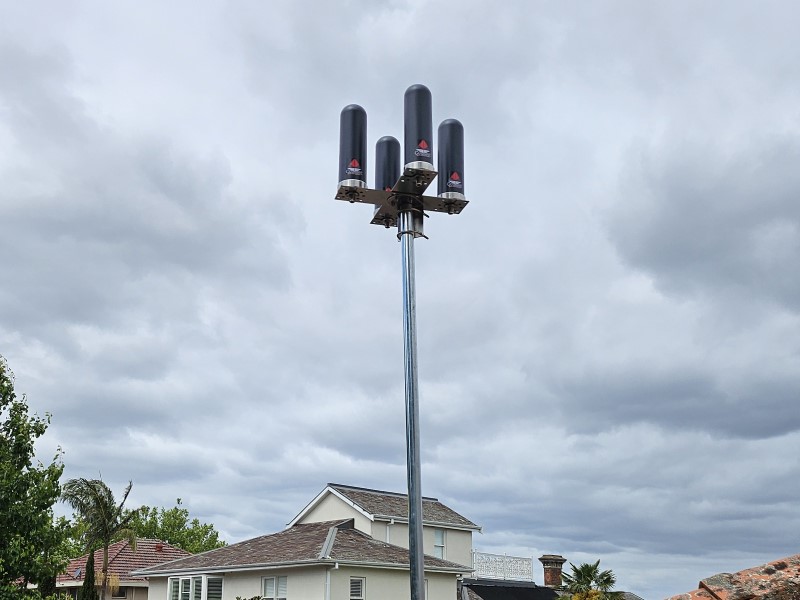

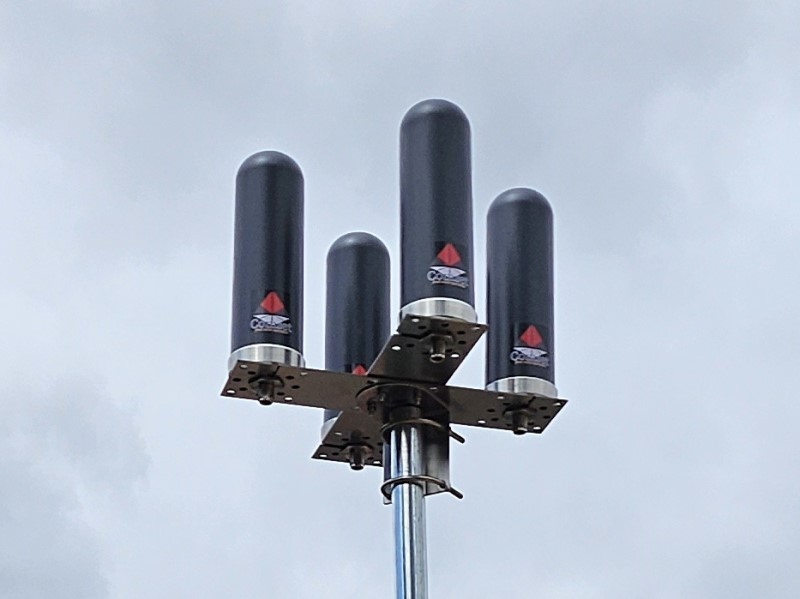

This 5G Outdoor Antenna incorporates zinc alloy elements inside each of the four ABS radomes. It is suitable for outdoor harsh weather conditions. It is designed for wall and pole mounting.

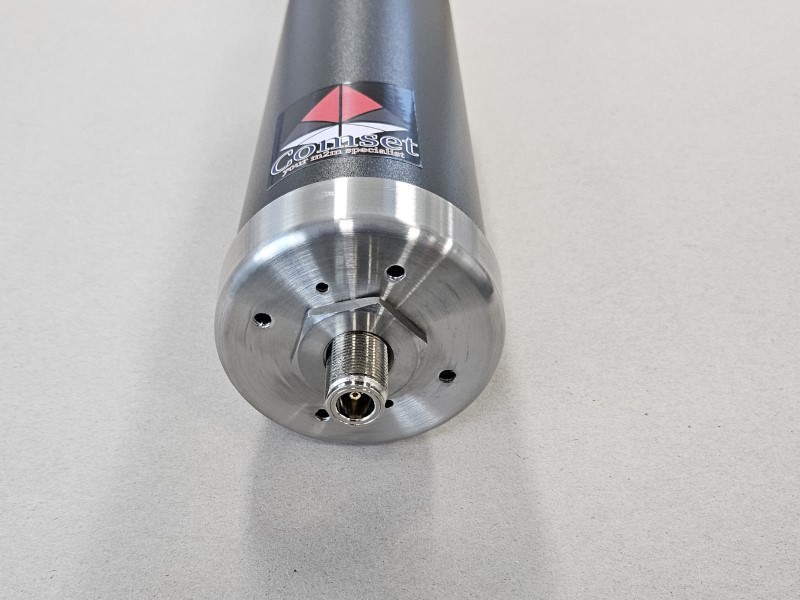

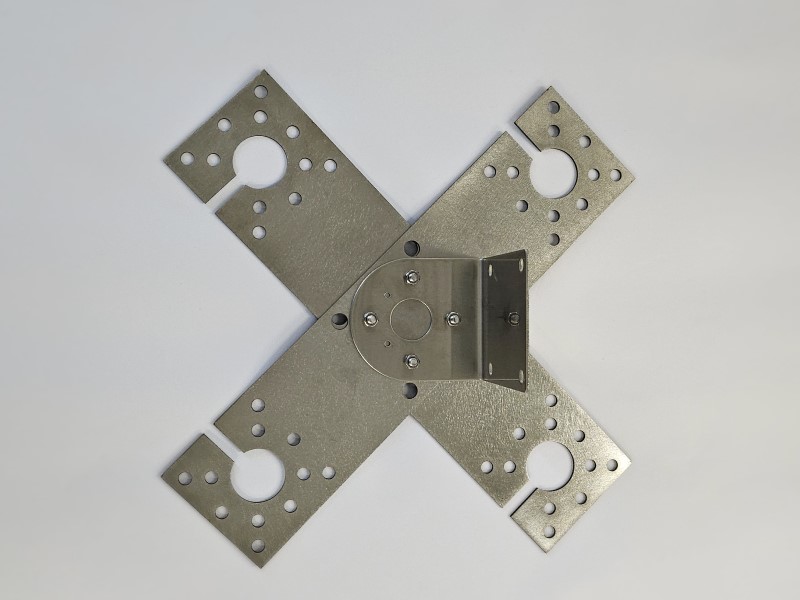

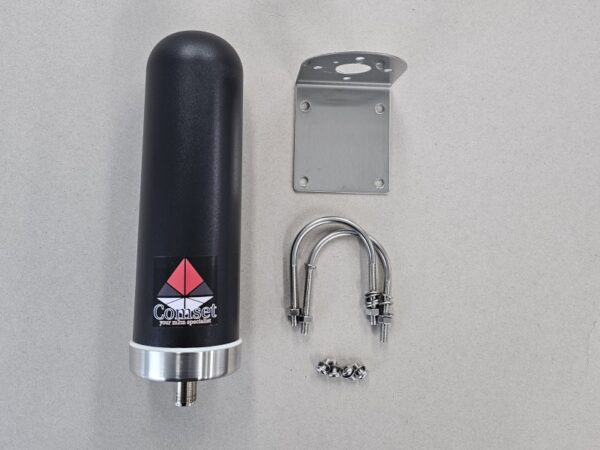

The antenna comes with four stainless steel ‘L’ mount brackets (316) and U bolts. It also comes with two stainless steel (304) multi-antenna flat brackets for easy installation. Each antenna is fitted with a N-Female connector that can be connected to your choice of coaxial cable. We have a range of 2m, 5m, 10m, 15m and 20m coaxial cables to choose from. The shorter the cable the better, to reduce signal loss.

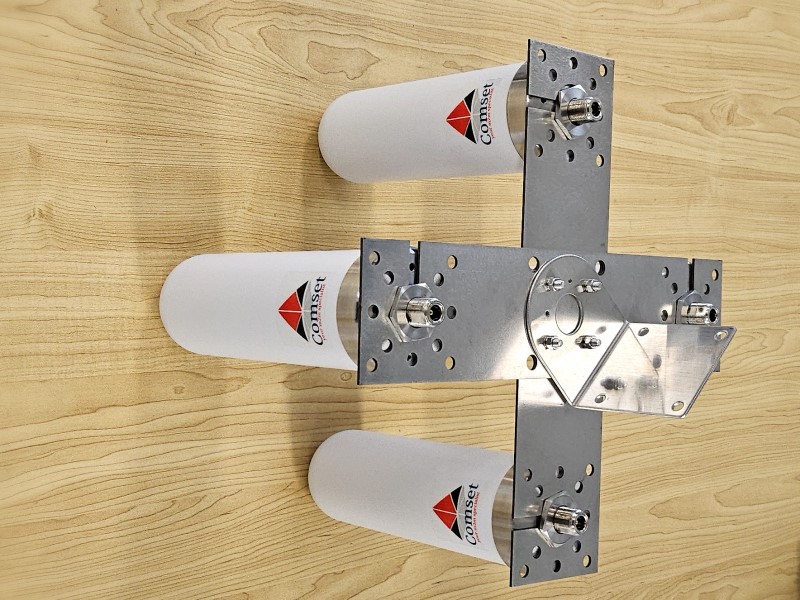

There are two colours to choose from: ANT-MIMO4X4-006A-X in white, and ANT-MIMO4X4-006B-X in black.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 3G/ 4G/ 5G (695-4800MHz)
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Pole and wall mount, with four 316 stainless steel ‘L’ mounting brackets and two 304 stainless steel flat brackets included
- High gain 9dbi peak gain each
- N-Female connector (cables not included)
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.13 | Yes |
| Telstra 5G | 850 | n5 | 6.56 | Yes |
| Telstra 4G | 1800 | 3 | 8.55 | Yes |
| Telstra 4G | 2100 | 1 | 8.10 | Yes |
| Telstra 4G | 2600 | 7 | 9.5 | Yes |
| Telstra 5G | 3500 | n78 | 9.23 | Yes |
| Optus 4G+ | 700 | 28 | 6.13 | Yes |
| Optus 4G+ | 900 | 8 | 6.95 | Yes |
| Optus 4G+ | 1800 | 3 | 8.55 | Yes |
| Optus 5G | 2100 | n1 | 8.10 | Yes |
| Optus 4G+ | 2300 | 40 | 8.10 | Yes |
| Optus 5G | 2300 | n40 | 8.10 | Yes |
| Optus 4G+ | 2600 | 7 | 9.50 | Yes |
| Optus 5G | 3500 | n78 | 9.23 | Yes |
| Vodafone 4G | 700 | 28 | 6.13 | Yes |
| Vodafone 5G | 700 | n28 | 6.13 | Yes |
| Vodafone 4G | 850 | 5 | 6.56 | Yes |
| Vodafone 5G | 850 | n5 | 6.56 | Yes |
| Vodafone 4G | 900 | 8 | 6.95 | Yes |
| Vodafone 4G | 1800 | 3 | 8.55 | Yes |
| Vodafone 5G | 1800 | n3 | 8.55 | Yes |
| Vodafone 4G | 2100 | 1 | 8.10 | Yes |
| Vodafone 5G | 2100 | n1 | 8.10 | Yes |
| Vodafone 5G | 3500 | n78 | 9.23 | Yes |
| TPG 4G | 700 | 28 | 6.13 | Yes |
| TPG 4G | 2600 | 7 | 9.5 | Yes |
| NBN Co | 2300 | 40 | 8.10 | Yes |
| Model | ANT-MIMO4X4-006B-X |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 3G/4G/5G |
| Gain | 6.13 dBi @ 698-803MHz |
| 6.56 dBi @ 824-894MHz | |
| 6.95 dBi @ 880-960MHz | |
| 8.55 dBi @ 1710-1880MHz | |
| 7.56 dBi @ 1850-1990MHz | |
| 8.10 dBi @ 1920-2170MHz | |
| 9.5 dBi @ 2490-2700MHz | |
| 9.23 dBi @ 3400-3600MHz | |
| 8.33 dBi @ 4000-4800MHz | |
| Polarisation | Vertical |
| VSWR | <2 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 25⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | ABS |
| Radiating Element Material | Zinc alloy |
| Colour | White |
| Height | 25CM each (32CM with bracket) |
| Weight | 0.5Kg each |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ mast mount |
| Mounting bracket | Stainless steel U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Cable | Not included |
| Connector | N-Female each |
