- Fiberglass multiband marine antenna
- Supports all bands across 3G / 4G / 5G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Perfect protection against extreme weather conditions
- Adjustable white nylon mounting bracket
- 9 dbi peak gain
- 30CM cable terminated with a N Female connector that can be connected to a low loss 2m, 5m, 10m or 15m coaxial cable.
Caravan Antennas 3G/4G/5G
4G/5G Marine Omni Antenna 3G+4G+5G (ANT-MRN-03NF)
Description
The Comset ANT-MRN-03NF 3G/4G/5G Marine Omni Antenna, with 9 dBi peak gain and a wide frequency band of 698- 4200MHz, provides an innovative and future proof solution for 3G, 4G and 5G networks. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band. The Comset ANT-MRN-03NF incorporates strong aluminium and stainless steel components, with a fibreglass whip. It is suitable to operate in the worst sea weather conditions.

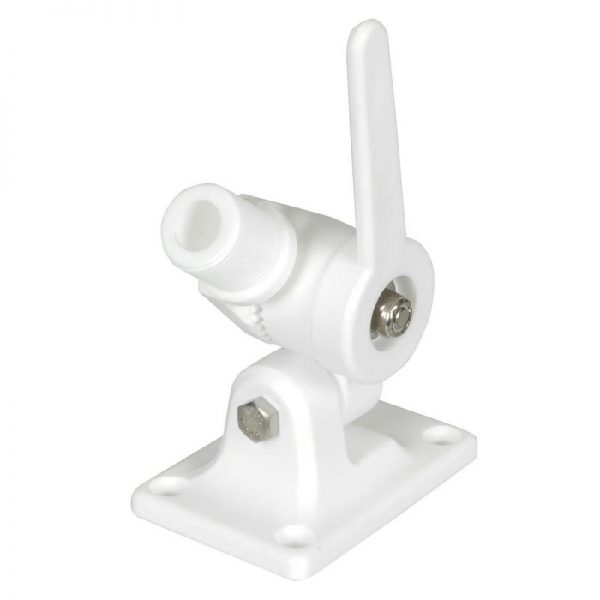

This 4G and 5G antenna comes with an adjustable white nylon mount bracket. This makes it easy to adjust the angle for a variety of vessel mounting requirements. The antenna is fitted with a N-Female connector that can be connected to your choice of coaxial cable. We have a range of 2m, 5m, 10m and 15m coaxial cables to choose from. The shorter the cable the better, to reduce signal loss.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 3G / 4G/ 5G
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Perfect protection against extreme weather conditions
- Adjustable white nylon mounting bracket
- 9 dBi peak gain
- 30cm cable terminated with a N Female connector that can be connected to a low loss coaxial cable
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 4.5 | Yes |
| Telstra 5G | 850 | n5 | 4.8 | Yes |
| Telstra 4G | 1800 | 3 | 6 | Yes |
| Telstra 4G | 2100 | 1 | 7.5 | Yes |
| Telstra 4G | 2600 | 7 | 9 | Yes |
| Telstra 5G | 3500 | n78 | 9 | Yes |
| Optus 4G+ | 700 | 28 | 4.5 | Yes |
| Optus 4G+ | 900 | 8 | 4.8 | Yes |
| Optus 4G+ | 1800 | 3 | 6 | Yes |
| Optus 5G | 2100 | n1 | 7.5 | Yes |
| Optus 4G+ | 2300 | 40 | 8 | Yes |
| Optus 5G | 2300 | n40 | 8 | Yes |
| Optus 4G+ | 2600 | 7 | 9 | Yes |
| Optus 5G | 3500 | n78 | 9 | Yes |
| Vodafone 4G | 700 | 28 | 4.5 | Yes |
| Vodafone 5G | 700 | n28 | 4.5 | Yes |
| Vodafone 4G | 850 | 5 | 4.8 | Yes |
| Vodafone 5G | 850 | n5 | 4.8 | Yes |
| Vodafone 4G | 900 | 8 | 4.8 | Yes |
| Vodafone 4G | 1800 | 3 | 6 | Yes |
| Vodafone 5G | 1800 | n3 | 6 | Yes |
| Vodafone 4G | 2100 | 1 | 7.5 | Yes |
| Vodafone 5G | 2100 | n1 | 7.5 | Yes |
| Vodafone 5G | 3500 | n78 | 9 | Yes |
| TPG 4G | 700 | 28 | 4.5 | Yes |
| TPG 4G | 2600 | 7 | 9 | Yes |
| NBN Co | 2300 | 40 | 7.8 | Yes |
| Model | ANT-MRN-03NF |
| Electrical Data | |
| Frequency | 698-960/1710-4200MHz |
| Operational bands | 3G/4G/5G |
| Gain | 4.5 dBi @ 700MHz |
| 4.8 dBi @ 850MHz | |
| 4.8 dBi @ 900MHz | |
| 6 dBi @ 1800MHz | |
| 7.5 dBi @ 2100MHz | |
| 7.8 dBi @ 2300MHz | |
| 7.8 dBi @ 2400MHz | |
| 9 dBi @ 2600MHz | |
| 9 dBi @ 3500MHz | |
| Polarisation | Vertical |
| VSWR | <2.0 |
| Lightning Protection | Direct Ground |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Material | Fibreglass, Aluminium, Stainless Steel |
| Colour | White |
| Dimension | 660mm (excluding mounting bracket) |
| Weight | 0.7Kg |
| Working Temperature | -40 ⁰C ~ +80 ⁰C |
| Mounting Data | |
| Fixing | Wall mount/ mast mount/ desk mount |
| Mounting bracket | Marine Nylon Mount |
| Hold Pole Diameter | 25-40 mm |
| Cable Data | |
| Type | CS29 Coax, double shielded RG58 |
| Diameter | 5mm |
| Length | 30cm |
| Termination | N Female |
E-Plane
H-Plane
