WATERPROOF OUTDOOR ENCLOSURE
- Manufactured to endure inclement outdoor environments, this single port housing offers base knock-out with rubber grommet, a hidden hinge and pre-moulded extended legs.
- Designed for surface/wall-mount applications, its entry port accepts up to 2.5cm diameter cable bundles.
- Removable rubber grommet in the entry/exit port makes servicing faster and easier.
- Add a cable gland by drilling a hole through the grommet.
- An “F” termination is included for an optional security locking connector (sold separately).
- Mount with wood-screws or bolts: Partial-holes for screws or bolts.
- Material: UV stabilized, flame retardant polypropylene
- Standard Colour: Grey
- Inside Dimensions: 22.9 x 15.5 x 7.9cm
- Weight: 357g
- Allow 24/7 secure access by a service technician with the available override or F81 locking mechanism.

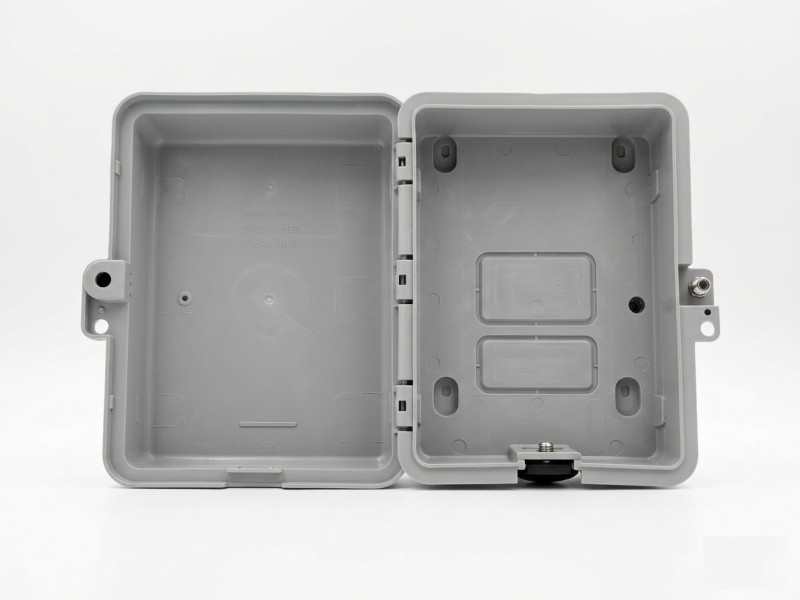

- 180 degree hinged lid and dual snap locks provides installers with easy and open access for installation and repair.
- To waterproof any cable connections that might be exposed to the elements, use silicone grease and flood the cable connections (Power, Ethernet, coax cables) with silicone grease to waterproof them.
* minor assembly required
