- Supports all bands across 3G / 4G/ 5G (695-4800MHz)
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Suitable for marine installation, with a stainless steel cylinder mounting bracket included
- High gain 9dbi peak gain
5G External Antenna 3G+4G+5G Surface Mount (ANT-LTE-006A-SM)
Description

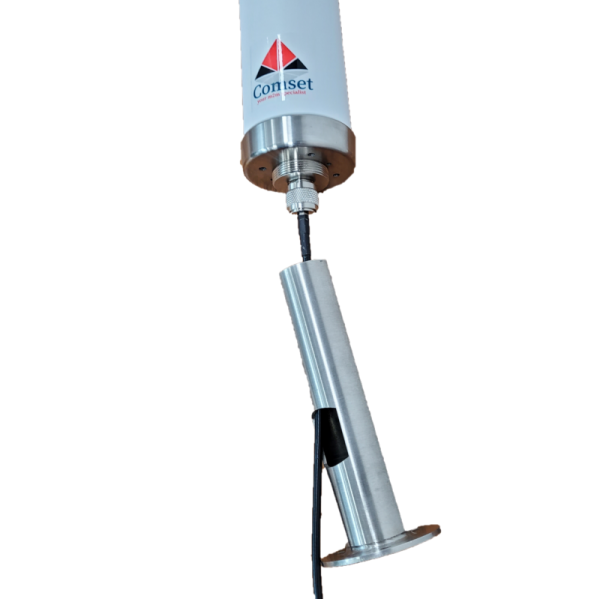

The Comset ANT-LTE-006A-SM 3G/4G/5G Multiband Indoor/Outdoor Omni 5G External Antenna provides an innovative and future proof solution for 3G, 4G and 5G networks. It has a 9 dBi peak gain and a wide frequency band of 695- 4800MHz. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band, as well with 5G networks. Incorporating zinc alloy element inside a solid ABS radome, this Comset 5G External Antenna is designed for surface mounting. The Comset ANT-LTE-006A-SM comes with a stainless steel cylinder mounting bracket. This antenna is suitable for Marine installations.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Supports all bands across 3G / 4G/ 5G (695-4800MHz)
- Compatible with Telstra’s new 4GX and Optus’ 4G Plus networks
- Carrier Aggregation ready
- Perfect protection against extreme weather conditions
- Suitable for marine installation, with a stainless steel cylinder mounting bracket included
- High gain 9dbi peak gain
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.13 | Yes |
| Telstra 5G | 850 | n5 | 6.56 | Yes |
| Telstra 4G | 1800 | 3 | 8.55 | Yes |
| Telstra 4G | 2100 | 1 | 8.10 | Yes |
| Telstra 4G | 2600 | 7 | 9.5 | Yes |
| Telstra 5G | 3500 | n78 | 9.23 | Yes |
| Optus 4G+ | 700 | 28 | 6.13 | Yes |
| Optus 4G+ | 900 | 8 | 6.95 | Yes |
| Optus 4G+ | 1800 | 3 | 8.55 | Yes |
| Optus 5G | 2100 | n1 | 8.10 | Yes |
| Optus 4G+ | 2300 | 40 | 8.10 | Yes |
| Optus 5G | 2300 | n40 | 8.10 | Yes |
| Optus 4G+ | 2600 | 7 | 9.50 | Yes |
| Optus 5G | 3500 | n78 | 9.23 | Yes |
| Vodafone 4G | 700 | 28 | 6.13 | Yes |
| Vodafone 5G | 700 | n28 | 6.13 | Yes |
| Vodafone 4G | 850 | 5 | 6.56 | Yes |
| Vodafone 5G | 850 | n5 | 6.56 | Yes |
| Vodafone 4G | 900 | 8 | 6.95 | Yes |
| Vodafone 4G | 1800 | 3 | 8.55 | Yes |
| Vodafone 5G | 1800 | n3 | 8.55 | Yes |
| Vodafone 4G | 2100 | 1 | 8.10 | Yes |
| Vodafone 5G | 2100 | n1 | 8.10 | Yes |
| Vodafone 5G | 3500 | n78 | 9.23 | Yes |
| TPG 4G | 700 | 28 | 6.13 | Yes |
| TPG 4G | 2600 | 7 | 9.5 | Yes |
| NBN Co | 2300 | 40 | 8.10 | Yes |
| Model | ANT-LTE-006A-SM |
| Electrical Data | |
| Frequency | 695-4800MHz |
| Operational bands | 2G/3G/4G/5G |
| Gain | 6.13 dBi @ 698-803MHz |
| 6.56 dBi @ 824-894MHz | |
| 6.95 dBi @ 880-960MHz | |
| 8.55 dBi @ 1710-1880MHz | |
| 7.56 dBi @ 1850-1990MHz | |
| 8.10 dBi @ 1920-2170MHz | |
| 9.5 dBi @ 2490-2700MHz | |
| 9.23 dBi @ 3400-3600MHz | |
| 8.33 dBi @ 4000-4800MHz | |
| Polarisation | Vertical |
| VSWR | <2 |
| Horizontal Beamwidth | 360⁰ |
| Vertical Beamwidth | 25⁰ |
| Lightning Protection | Direct Ground |
| Impedance (Ohm) | 50 |
| Max input power (W) | 100 |
| Radiation | Omni |
| Mechanical Data | |
| Radome Material | ABS |
| Radiating Element Material | Zinc alloy |
| Colour | White |
| Height | 25CM (without cylinder mount) |
| Weight | 0.5Kg (without cylinder mount) |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Mounting Data | |
| Fixing | Surface mount |

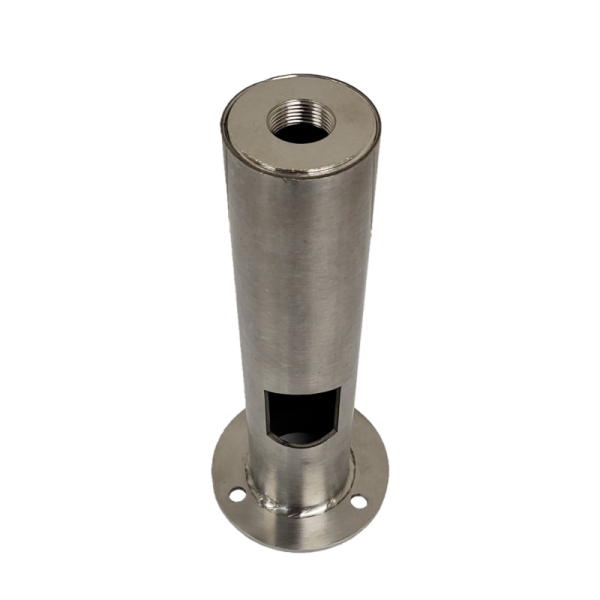

| Mounting bracket | Cylinder mounting bracket and stainless steel U bolt brackets included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Cable | Not included |
| Connector | N Female |
