- Directional high gain 4 x 8 dBi peak gain
- Compatible with 3G, 4G and 5G networks
- 600-6000MHz multi-band coverage
- 4 x RG58 30cm leads terminated with N-female connectors
- Pole or wall mountable
- Waterproof (IP65) Lightweight
5G/4G/3G Antennas

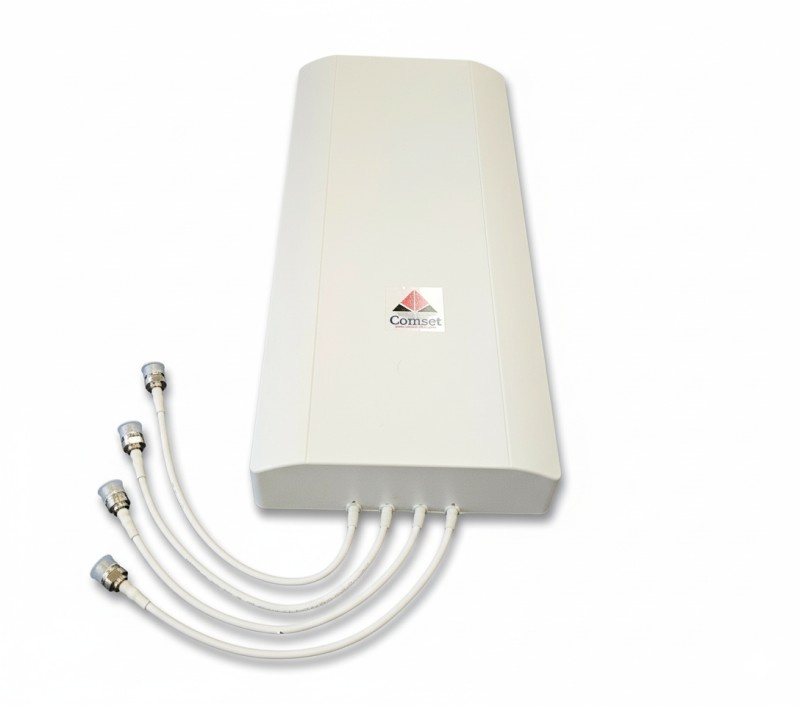

5G Panel 4×4 MIMO Antenna 3G+4G+5G (ANT-PNL4x4-066008)
Description
The ANT-PNL4x4-066008 is a MIMO, Multiple Input Multiple Output, 4×4 outdoor panel antenna. With its multiband capabilities spanning from 600MHz to 6000MHz, this antenna offers unparalleled coverage for 3G, 4G, and 5G networks. Whether it’s the need for faster data speeds or reliable connectivity in remote areas, this antenna is engineered to deliver. Its impressive high gain of 8dBi ensures improved signal reception and transmission, amplifying the reach of your network to maximise performance.
Moreover, the MIMO 4×4 configuration enables simultaneous communication between the antenna and the base station, optimising network capacity and minimising latency. This makes it an ideal choice for businesses, homes or outdoor setups where consistent and high-speed connectivity across various 3G, 4G and 5G networks is paramount. Whether it’s boosting network performance or ensuring a seamless streaming experience, the ANT-PNL4x4-066008 outdoor panel antenna stands as a robust solution for modern connectivity needs.
The antenna is fitted with 4 short leads terminated with N-Female connectors, that can be connected to your choice of coaxial cable. We have a range of 2m, 5m, 10m, 15m and 20m coaxial cables to choose from. The shorter the cable the better, to reduce signal loss.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Directional high gain 4 x 8 dBi peak gain
- Compatible with 3G, 4G and 5G networks
- 600-6000MHz multi-band coverage
- 4 x RG58 30cm leads terminated with N-female connectors (coaxial cable not included)

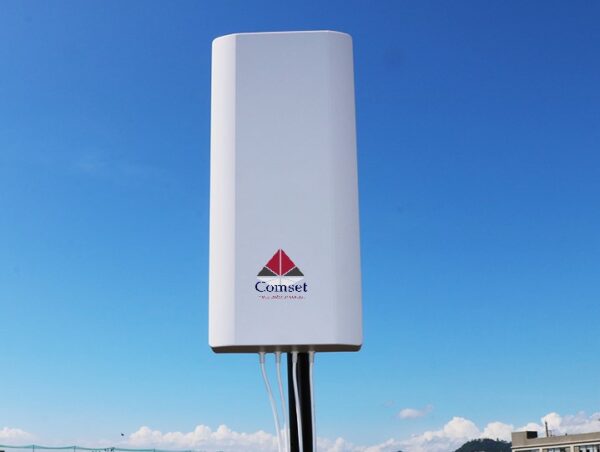

- Pole or wall mountable
- Waterproof (IP65) Lightweight
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 6.00 | Yes |
| Telstra 5G | 850 | n5 | 7.00 | Yes |
| Telstra 4G | 1800 | 3 | 8.00 | Yes |
| Telstra 4G | 2100 | 1 | 8.00 | Yes |
| Telstra 4G | 2600 | 7 | 8.00 | Yes |
| Telstra 5G | 3500 | n78 | 8.00 | Yes |
| Optus 4G+ | 700 | 28 | 6.00 | Yes |
| Optus 4G+ | 900 | 8 | 7.00 | Yes |
| Optus 4G+ | 1800 | 3 | 8.00 | Yes |
| Optus 5G | 2100 | n1 | 8.00 | Yes |
| Optus 4G+ | 2300 | 40 | 8.00 | Yes |
| Optus 5G | 2300 | n40 | 8.00 | Yes |
| Optus 4G+ | 2600 | 7 | 8.00 | Yes |
| Optus 5G | 3500 | n78 | 8.00 | Yes |
| Vodafone 4G | 700 | 28 | 6.00 | Yes |
| Vodafone 5G | 700 | n28 | 6.00 | Yes |
| Vodafone 4G | 850 | 5 | 7.00 | Yes |
| Vodafone 5G | 850 | n5 | 7.00 | Yes |
| Vodafone 4G | 900 | 8 | 7.00 | Yes |
| Vodafone 4G | 1800 | 3 | 8.00 | Yes |
| Vodafone 5G | 1800 | n3 | 8.00 | Yes |
| Vodafone 4G | 2100 | 1 | 8.00 | Yes |
| Vodafone 5G | 2100 | n1 | 8.00 | Yes |
| Vodafone 5G | 3500 | n78 | 8.00 | Yes |
| TPG 4G | 700 | 28 | 6.00 | Yes |
| TPG 4G | 2600 | 7 | 8.00 | Yes |
| NBN Co | 2300 | 40 | 8.00 | Yes |
| Model | ANT-PNL4x4-066008 | |||
| Electrical Data | ||||
| Frequency | 600-698 | 698-960 | 1710-2700 | 3300-6000 |
| Gain (dBi) | 6 | 7 | 8 | 8 |
| Operational bands | 3G/4G/5G/WLAN | |||
| Polarisation | Vertical and Horizontal | |||
| Horizontal Beamwidth | 95 | 85 | 75 | 73 |
| Vertical Beamwidth | 85 | 75 | 65 | 60 |
| VSWR | <2 | |||
| Isolation between ports (dB) | >14 | >15 | >20 | >22 |
| Lightning Protection | DC Ground | |||
| Impedance (Ohm) | 50 | |||
| Max input power (W) | 100 | |||
| Mechanical Data | ||||
| Radome Material | ABS | |||
| Dimensions | 485 x 220 x 65 | |||
| Colour | White | |||
| Weight | 1.5Kg | |||
| Working Temperature | -40 ⁰C ~ +60 ⁰C | |||
| Mounting Data | ||||
| Fixing | Pole mount | |||
| Mounting bracket | U bolt brackets included | |||
| Hold Pole Diameter | Ø35 – Ø50 mm | |||
| Cable | Not included | |||
| Connector | 4 x N-Female | |||
