- Multiband LPDA (Log Periodic Dipole Antenna) with a wide frequency range of 698-3800MHz
- 3G/4G/5G support
- Carrier aggregation ready
- 12 dBi peak gain
- 10m low loss RG58 cable included, terminated with SMA-M connector
- Steel mounting bracket included, electroplated to provide high corrosion resistance
5G/4G/3G Antennas
5G Antenna LTE LPDA 3G+4G+5G 10 m (ANT-YAGI-10SP)
Description

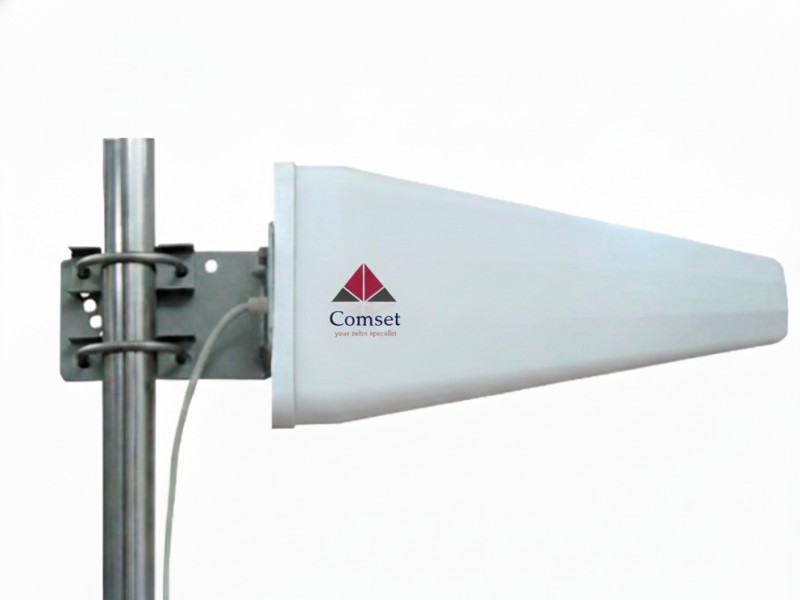

The Comset ANT-YAGI-10SP is a 3G/4G/5G LPDA Antenna. With a wide frequency band of 698-3800MHz, it is ideal for those seeking increased 5G antenna signal. Hence faster and more reliable data speeds on today’s modern 4G and 5G networks. It is compatible with Telstra’s new 4GX and Optus’ 4G Plus networks on the 700MHz B28 band, as well with 5G networks.

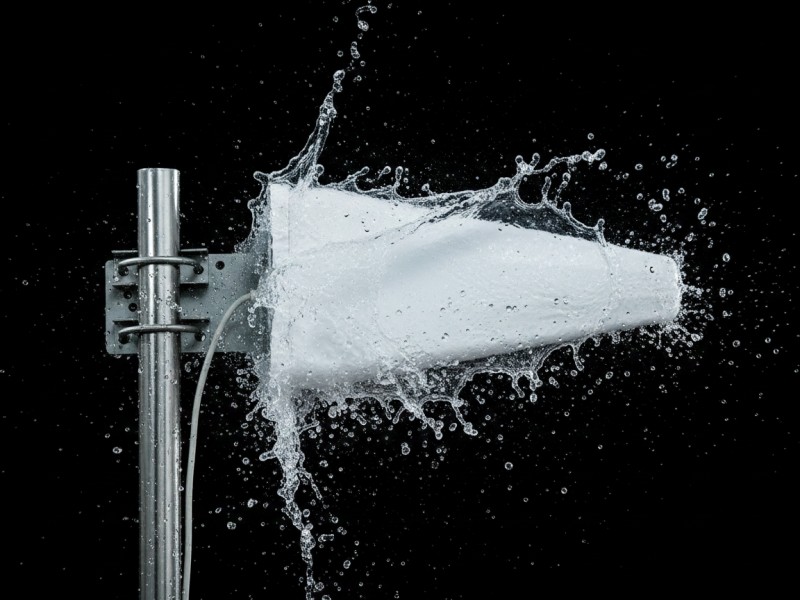

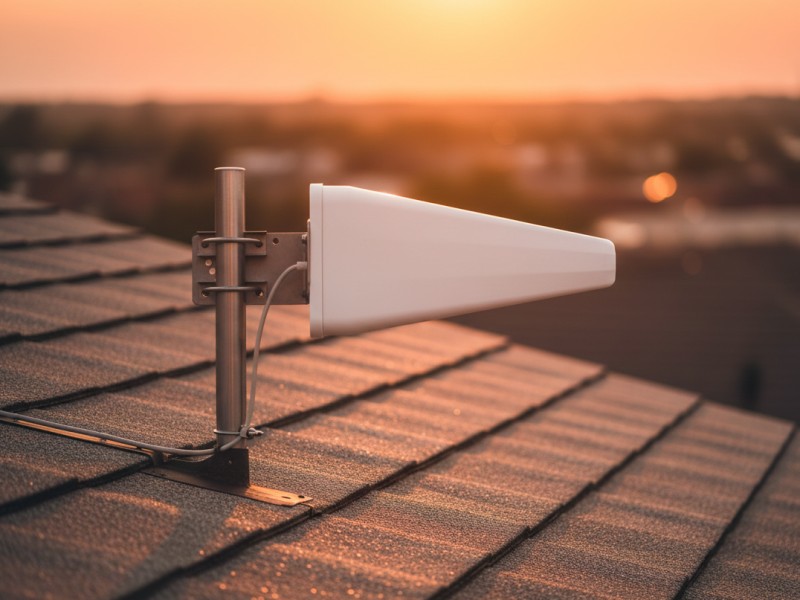

The weatherproof housing is designed for mast or wall mounting and is supplied with a 10 metre of low loss RG58 cable terminated with SMA male connector.

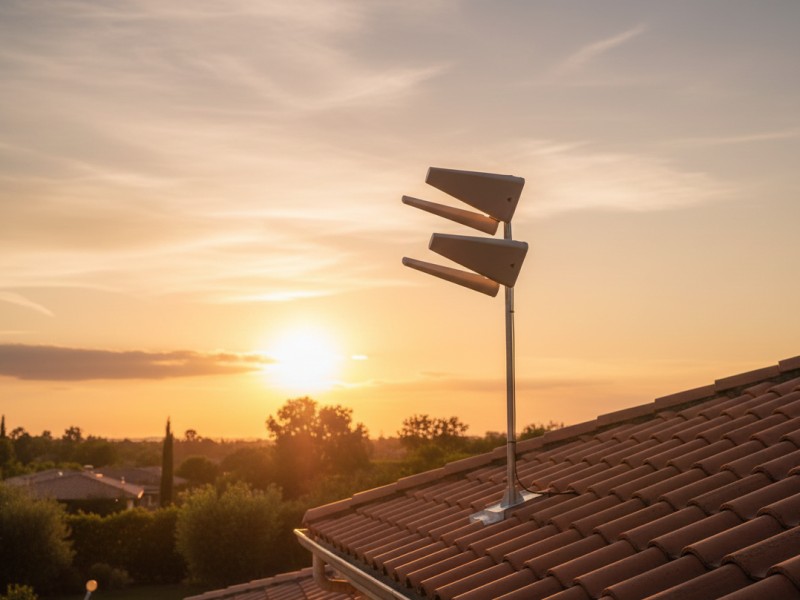

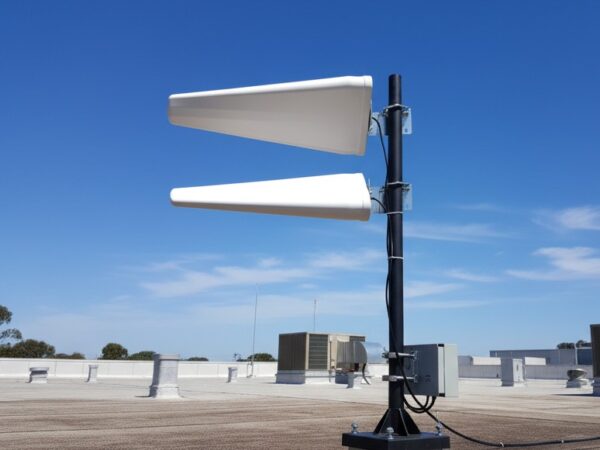

Some images display two 5G LPDA antennas, or four 5G LPDA antennas, sold individually (ANT-YAGI-10SP). The two antennas deliver a MIMO 2×2 solution. The four antennas deliver a MIMO 4×4 solution.
Click here to find your nearest 3G/4G/5G Cell Tower.
Click here to find Telstra’s 4G and 5G coverage in your area.
Click here to find Optus’ 4G and 5G coverage in your area.
- Multiband LPDA (Log Periodic Dipole Antenna) with a wide frequency range of 698-3800MHz
- 3G/4G/5G support
- Carrier aggregation ready
- 12 dBi peak gain
- 10m low loss RG58 cable included, terminated with SMA-M connector
- Steel mounting bracket included, electroplated to provide high corrosion resistance
Network Compatibility:
| Carrier | f (MHz) | Band | Gain (dBi) | Compatibility |
| Telstra 4GX | 700 | 28 | 9 | Yes |
| Telstra 5G | 850 | n5 | 9 | Yes |
| Telstra 4G | 1800 | 3 | 11 | Yes |
| Telstra 4G | 2100 | 1 | 12 | Yes |
| Telstra 4G | 2600 | 7 | 12 | Yes |
| Telstra 5G | 3500 | n78 | 12 | Yes |
| Optus 4G+ | 700 | 28 | 9 | Yes |
| Optus 4G+ | 900 | 8 | 10 | Yes |
| Optus 4G+ | 1800 | 3 | 11 | Yes |
| Optus 5G | 2100 | n1 | 12 | Yes |
| Optus 4G+ | 2300 | 40 | 12 | Yes |
| Optus 5G | 2300 | n40 | 12 | Yes |
| Optus 4G+ | 2600 | 7 | 12 | Yes |
| Optus 5G | 3500 | n78 | 12 | Yes |
| Vodafone 4G | 700 | 28 | 9 | Yes |
| Vodafone 5G | 700 | n28 | 9 | Yes |
| Vodafone 4G | 850 | 5 | 9 | Yes |
| Vodafone 5G | 850 | n5 | 9 | Yes |
| Vodafone 4G | 900 | 8 | 10 | Yes |
| Vodafone 4G | 1800 | 3 | 11 | Yes |
| Vodafone 5G | 1800 | n3 | 11 | Yes |
| Vodafone 4G | 2100 | 1 | 12 | Yes |
| Vodafone 5G | 2100 | n1 | 12 | Yes |
| Vodafone 5G | 3500 | n78 | 12 | Yes |
| TPG 4G | 700 | 28 | 9 | Yes |
| TPG 4G | 2600 | 7 | 12 | Yes |
| NBN Co | 2300 | 40 | 12 | Yes |
| Model | ANT-YAGI-10SP |
| Electrical Data | |
| Frequency | 698-3800MHz |
| Operational bands | 3G/4G/5G |
| Peak Gain | 9 dBi @ 700MHz |
| 9 dBi @ 850MHz | |
| 10 dBi @ 900MHz | |
| 11 dBi @ 1800MHz | |
| 12 dBi @ 2100MHz | |
| 12 dBi @ 2600MHz | |
| 12 dBi @ 3500MHz | |
| Polarisation | Vertical |
| VSWR | ≤ 1.8 |
| Horizontal Beamwidth | 90⁰ |
| Vertical Beamwidth | 60⁰ |
| Front to back ratio | ≥ 16dB |
| Lightning Protection | DC Ground |
| Max input power (W) | 50 |
| Radiation | Directional |
| Mechanical Data | |
| Reflector Material | Aluminium Alloy |
| Radome Material | ABS |
| Colour | White |
| Antenna Dimensions | 440 x 209 x 70 mm |
| Packaging Dimensions | 450 x 214 x 75 mm |
| Antenna Weight | 0.8Kg |
| Working Temperature | -40 ⁰C ~ +70 ⁰C |
| Rated Wind Velocity | 60 m/s |
| Mounting Data | |
| Fixing | Wall mount/ mast mount |
| Mounting bracket | Included |
| Hold Pole Diameter | Ø30 – Ø50 mm |
| Cable | 10M RG58 |
| Connector | SMA Male |
